Rear View Camera Connection Kit for Audi A3

Installing a rear view camera is an excellent way to make any car safer and more comfortable.

Rear view camera provides a high quality image with a wide viewing angle. Such camera, combined with active parking guidelines function (PAS), will become an irreplaceable parking assistant for any driver.

The camera is installed in the OEM place in the tailgate handle and does not spoil car appearance.

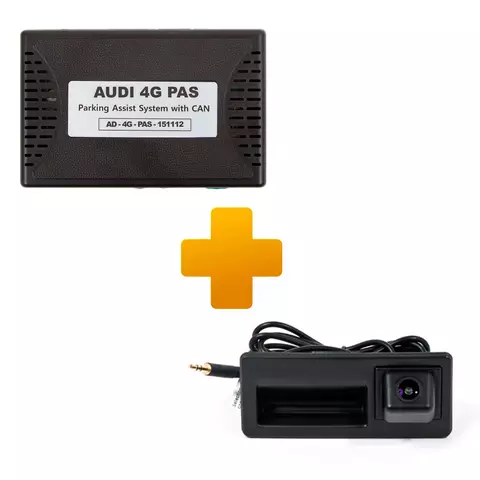

Picking the right components for installation can prove to be a difficult task. Therefore, we have included everything you need in this kit: camera connection adapter for Audi A3 and a rear view camera. All you need to do is install the adapter and connect the cameras.

Adapter

This adapter is designed for connecting rear view cameras to the OEM monitor of Audi cars. The adapter also has active parking guidelines function (PAS).

Technical Specifications

• Inputs:
  • Analog RGB input for navigation systems
  • CVBS for rear view camera
  • CVBS for front view camera
  • LVDS
• Outputs:
  • LCD output
• Power:
  • Input power: 8 V DC ~ 24 V DC
  • Max. power consumption: 12 Watt
• Dimensions: 116 mm × 83 mm × 21 mm
• Input mode switching
  • DIP switches
  • With an OEM button via CAN

Manuals

• Download user manual for camera adapter for Audi

Rear View Camera

Technical Specifications

Image sensor	CMOS
Video system	NTSC
Resolution	480 TV lines
Minimum illumination	0.3 lux
Lens angle	170°
IR LEDs	no
Parking coordinate	yes
Working voltage	from 10V to 15V (12V in car)
Working temperature	from -20°C to +70°C
Waterproof grade IP	IP67 and IP68
Image	mirror
Dimensions	110 mm × 49 mm × 39 mm

Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.

Package Content

• Camera connection adapter
• Rear view camera
