Overview
The video interface for rear view camera connection to monitors of Audi models, equipped with MMI 3G system. There is video input for connection of DVD player or Android TV box.
Description
The video interface is designed for rear view camera connection to monitors of Audi models, equipped with MMI 3G system. The adapter also has video input for connection of external video devices, for example, DVD player or Android TV box.
The adapter also has active parking guidelines function.
Rear View Camera Adapter
Specifications
- Inputs:
- CVBS for reverse camera
- CVBS for video sources connection
- Power:
- Input power: 8-24 V DC
- Max. consumed power: 12 W
- Dimensions: 116 mm × 83 mm × 24 mm
- Model selection by DIP switches
- Automatic display of rear view camera image when reversing
- Switch to image from CVBS input by MMI button
Rear View Camera Adapter
Compatibility
| Car model | Model year | Monitor | Multimedia system | ||
|---|---|---|---|---|---|
| From | To | Diagonal | Resolution | ||
| A1 | 2013 | – | 6,5″ | 400×240 | MMI 3G |
| 7″ | 800×480 | ||||
| A4 | 2010 | – | 7″ | 800×480 | |
| A5 | 2010 | – | 7″ | 800× 480 | |
| A6 | 2012 | – | 6,5″ | 400× 240 | |
| 8″ | 800× 480 | ||||
| A7 | 2012 | – | 8″ | 800× 480 | |
| A8 | 2012 | – | 8″ | 800× 480 | |
| Q3 | 2012 | – | 6,5″ | 400× 240 | |
| 7″ | 800× 480 | ||||
| Q5 | 2012 | – | 7″ | 800× 480 | |
| Q7 | 2012 | – | 7″ | 800× 480 | |
Fits cars with High Speed CAN bus. If you don't know which bus is installed in your car, ask your local dealer.
Rear View Camera Adapter
Manuals
Rear View Camera Adapter
Package Content
- Main module
- Cables

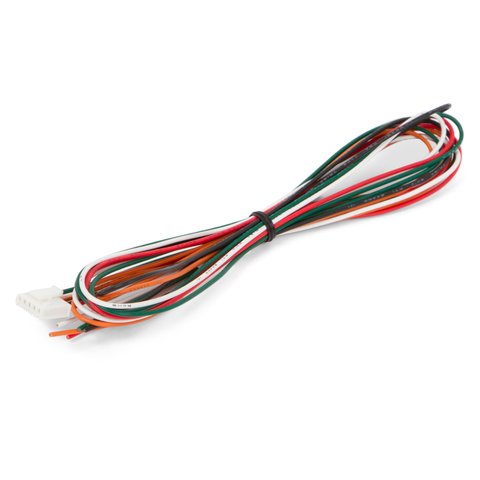

- Power cable
- Camera power cable
- LVDS
Read more
Description
The video interface is designed for rear view camera connection to monitors of Audi models, equipped with MMI 3G system. The adapter also has video input for connection of external video devices, for example, DVD player or Android TV box.
The adapter also has active parking guidelines function.
Rear View Camera Adapter
Specifications
- Inputs:
- CVBS for reverse camera
- CVBS for video sources connection
- Power:
- Input power: 8-24 V DC
- Max. consumed power: 12 W
- Dimensions: 116 mm × 83 mm × 24 mm
- Model selection by DIP switches
- Automatic display of rear view camera image when reversing
- Switch to image from CVBS input by MMI button
Rear View Camera Adapter
Compatibility
| Car model | Model year | Monitor | Multimedia system | ||
|---|---|---|---|---|---|
| From | To | Diagonal | Resolution | ||
| A1 | 2013 | – | 6,5″ | 400×240 | MMI 3G |
| 7″ | 800×480 | ||||
| A4 | 2010 | – | 7″ | 800×480 | |
| A5 | 2010 | – | 7″ | 800× 480 | |
| A6 | 2012 | – | 6,5″ | 400× 240 | |
| 8″ | 800× 480 | ||||
| A7 | 2012 | – | 8″ | 800× 480 | |
| A8 | 2012 | – | 8″ | 800× 480 | |
| Q3 | 2012 | – | 6,5″ | 400× 240 | |
| 7″ | 800× 480 | ||||
| Q5 | 2012 | – | 7″ | 800× 480 | |
| Q7 | 2012 | – | 7″ | 800× 480 | |
Fits cars with High Speed CAN bus. If you don't know which bus is installed in your car, ask your local dealer.
Rear View Camera Adapter
Manuals
Rear View Camera Adapter
Package Content
- Main module
- Cables
- Power cable
- Camera power cable
- LVDS
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
