RFCC Car Camera Control System for Lexus GEN8 13CY/15CY EU
Frequently bought together
RFCC Car Camera Control System allows you to connect a front view / rear view camera (if it was not installed by the manufacturer) in Lexus cars with GEN8 13CY/15CY EU switch between cameras using OEM steering wheel buttons.
This model of RFCC system is compatible only with cars from EU market made in 2014 - 2019. For more details,please refer to the table with compatible car models.
Advantages
- Fast and easy Plug&Play connection without damage to car wiring
- All factory functions continue working in the same way as before to the installation
- Car warranty is preserved.
- Change controller settings using DIP-switch
(in this new version, you can update firmware to add or fix features).
RFCC system provides 2 camera control modes:
- Automatic mode: front view camera image will be displayed on the screen automatically for 20-40 seconds when you switch from reverse to the first gear or until the car reaches a speed above 20 km/h.
- Manual mode: front and rear view camera image can be switched to at any moment using "MODE", "SEEK+", "SEEK-" buttons on the steering wheel.
Operation algorithms are described in more detail in the user manual.
Features
- Supports monitors from various manufacturers.
- Front view / rear view camera connection to the OEM monitor
- Automatic and manual camera control modes
- Use OEM steering wheel buttons to switch between cameras
- Remote firmware updating for adding/fixing features.
Note! Only cameras in NTSC format are supported.
Note! The additionally installed rear view camera (if there was no OEM rear view camera installed by the manufacturer) should be powered from ACC line (first turn of the key), otherwise the camera input will be not active. Depending on the type of the camera to be connected, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. (see the connection diagram). In case the camera requires more than +6 V, connect the camera power to ACC line.
Note! In order to make sure that operation algorithms are working correctly, front view camera should be powered up only from the RFCC.
Compatibility
| Model | Model year | Head unit | Additional compatibility condition | |
|---|---|---|---|---|
| From | To | |||
| CT200h | 2014 | 2019 | FujitsuTen GEN8 13CY/15CY EU 8th generation, car models of the EU market |
Cars with OEM navigation system Cars without OEM navigation system Cars equipped with Lexus Display Audio Controller |
| ES250 | 2018 | |||
| ES300h | 2015 | |||
| ES350 | ||||
| IS200t | 2019 | |||
| IS220d | 2014 | |||
| IS250 | ||||
| IS300 | 2015 | |||
| IS300h | ||||
| NX200t | 2014 | 2018 | ||
| NX300h | ||||
| RC200t | 2015 | |||
| RC300h | ||||
| RC F | ||||
| RX200t | 2019 | |||
These photos are provided for reference only. Joystick may look differently depending on the car model.
Manuals
Package Content

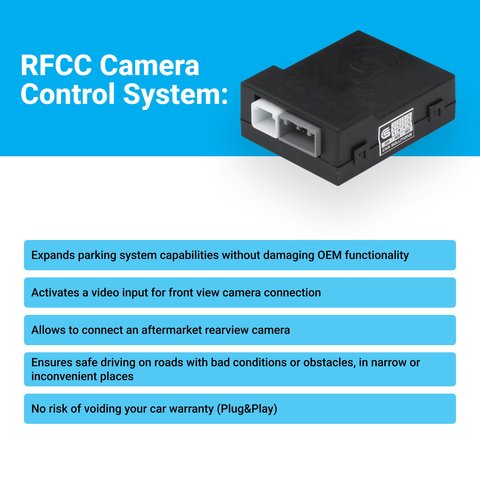

- Main unit

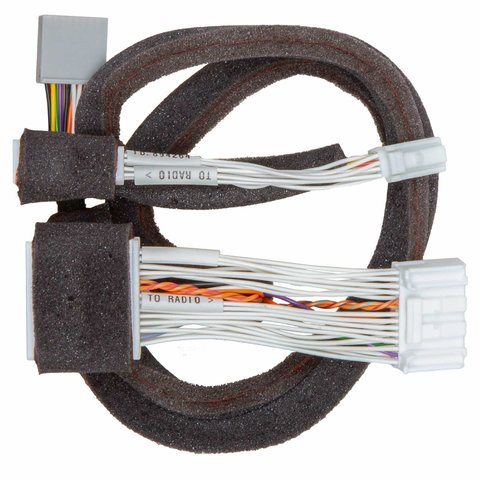

- Connection cables
| RFCC Camera Control System is compatible with the following models of Cars |
|
| RFCC Camera Control System is compatible with Camera Connection |
