RFCC Car Camera Control System for Mazda MZD Connect

RFCC Car Camera Control System allows you to connect a front view / rear view camera (if it was not installed by the manufacturer) in Mazda cars with MZD Connect system.
Advantages
- Fast and easy Plug&Play connection without damage to car wiring
- All factory functions continue working in the same way as before to the installation
- Car warranty is preserved.
- Change controller settings using DIP-switch
(in this new version, you can update firmware to add or fix features).
RFCC Car Camera Control System allows you to connect a front view / rear view camera (if it was not installed by the manufacturer) in Mazda cars with MZD Connect system.
Advantages
- Fast and easy Plug&Play connection without damage to car wiring
- All factory functions continue working in the same way as before to the installation
- Car warranty is preserved.
- Change controller settings using DIP-switch
(in this new version, you can update firmware to add or fix features).
RFCC system provides 2 camera control modes:

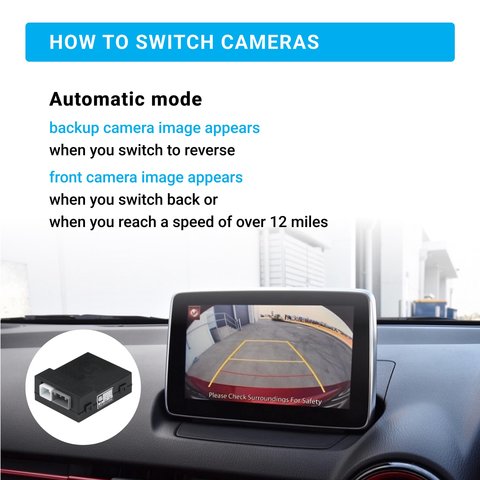

- Automatic mode: front view camera image will be displayed on the screen automatically for 20-40 seconds when you switch from reverse to the first gear or until the car reaches a speed above 20 km/h.
- Manual mode: front and rear view camera image can be switched to at any moment using "MODE", "SEEK+", "SEEK-" buttons on the steering wheel.
Operation algorithms are described in more detail in the user manual.
Features
- Supports monitors from various manufacturers.
- Front view / rear view camera connection to the OEM monitor
- Automatic and manual camera control modes
- Use OEM steering wheel buttons to switch between cameras
- Remote firmware updating for adding/fixing features.

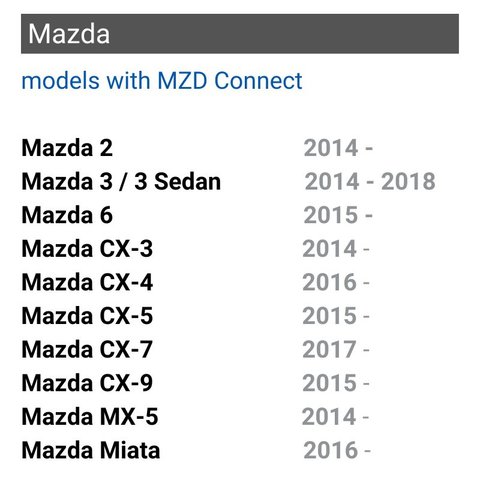

Compatibility
Model | Model years | System | Additional compatibility conditions |
|
---|---|---|---|---|
From | To | |||
Mazda 2 | 2014 | – |
MZD Connect without OEM navigation system MZD Connect with OEM navigation system BOSE or other manufacturer audio system |
7 " OEM monitor |
Mazda 3 | 2014 | 2018 | ||
Mazda 3 Sedan | 2014 | |||
Mazda 6 | 2015 | – | ||
Mazda CX-3 | 2014 | |||
Mazda CX-4 | 2016 | |||
Mazda CX-5 | 2015 | |||
Mazda CX-7 | 2017 | |||
Mazda CX-9 | 2015 | |||
Mazda MX-5* | 2014 | |||
Mazda Miata* | 2016 |
*Camera will most probably have to be powered up directly from the ACC line as the head unit does not output the required +6 V.
Note! Only cameras in NTSC format are supported.

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Package Content
- Main unit
- Connection cables
RFCC Camera Control System is compatible with Head Units |
|
RFCC Camera Control System is compatible with Camera Connection |
|
