RFCC TTG1 Car Camera Control System for Toyota Touch, Scion Bespoke
id: 875436
RFCC TTG1 Car Camera Control System for Toyota Touch, Scion Bespoke
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 159.00
Overview
Video
0.35 kg
Availability in stock:
EU
Warranty: 24 months RFCC camera control system for Toyota Touch, Scion Bespoke, allows you to connect a front view camera and switch between cameras using OEM steering wheel buttons. Read more
Download manual
Download installation diagram
USD 159.00
Frequently bought together
Bestseller
ID: 896301
Universal 120° Reverse Parking Camera 720P
USD 30.00
USD 25.00
Universal rear view camera in waterproof case HD-960s. 120° view angle.
Availability in stock:
HK
ID: 896301 0.2 kg
Universal camera with excellent image quality. Waterproof (IP68 class). Color - black.
Availability in stock:
HK
ID: 891696 0.24 kg
ID: 891697
Universal 170° Car Camera 720P (cube)
USD 30.00
USD 25.00
Universal camera with excellent image quality. Waterproof (IP67 class). Color - black.
Availability in stock:
HK
ID: 891697 0.2 kg
Universal camera with excellent image quality. Waterproof (IP68 class). Color - black.
Availability in stock:
HK
ID: 875106 0.2 kg
Description
RFCC TTG1 for Toyota front camera installation is a revolutionary solution that combines 3 devices: a front view camera adapter (it allows you to connect a front view camera in your car), a rear view camera adapter (it also allows you to connect a rear view camera, if it was not installed by the manufacturer) and a front camera switch (it allows you to use OEM steering wheel buttons as car camera control buttons). The system offers fast and easy Plug&Play connection without the need to cut car wiring. All OEM functions continue working as they did before installation and there's no risk of voiding car warranty.
RFCC system provides 2 camera control modes:
- Automatic mode: front view camera image will be displayed on the screen automatically for 30 seconds when you switch from reverse to the first gear (or Drive) or until the car reaches a speed above 20 km/h.
- Manual mode: front and rear view camera image can be switched to at any moment using "MODE", "SEEK+", "SEEK-" buttons on the steering wheel.
Operation algorithms are described in more detail in the user manual.
RFCC Camera Control System
Features
- Fast and easy Plug&Play connection without damage to car wiring
- Front view camera connection to the OEM monitor (front view camera adapter)
- Rear view camera connection to the OEM monitor (rear view camera adapter)
- Automatic and manual camera control modes
- Use OEM steering wheel buttons to switch between front camera, rear camera and factory screen
- All factory functions continue working in the same way as before to the installation
- Car warranty is preserved
RFCC Camera Control System
Video
Note! Only cameras in NTSC format are supported.
Note! The additionally installed rear view camera (if there was no OEM rear view camera installed by the manufacturer) should be powered from ACC line (first turn of the key), otherwise the camera input will be not active. Depending on the type of the camera to be connected, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. (see the connection diagram). In case the camera requires more than +6 V, connect the camera power to ACC line.
Note! In order to make sure that operation algorithms are working correctly, front view camera should be powered up only from the RFCC.
RFCC Camera Control System
Compatibility
Toyota
| Model | Model Years | System / Monitor | Additional compatibility conditions | |
|---|---|---|---|---|
| From | To | |||
| Auris | 2010 | 2014 | Touch Touch&Go Touch&Go Plus |
Monitors manufactured by Panasonic/Pioneer are supported. How to easily determine your monitor manufacturer. |
| Auris Hybrid | 2010 | 2014 | ||
| Avensis | 2011 | 2014 | ||
| Camry | 2011 | 2014 | ||
| Camry Hybrid | 2011 | 2014 | ||
| Corolla | 2011 | 2013 | ||
| Fortuner | 2011 | 2014 | ||
| GT86 | 2012 | 2015 | ||
| Highlander | 2012 | 2014 | ||
| Highlander Hybrid | 2012 | 2014 | ||
| Hilux | 2011 | 2014 | ||
| Matrix | 2011 | 2014 | ||
| Prius | 2011 | 2014 | ||
| Prius C | 2012 | 2014 | ||
| Prius MPV+ | 2012 | 2014 | ||
| Prius Plug-in Hybrid | 2012 | 2014 | ||
| RAV4 | 2010 | 2014 | ||
| Tacoma | 2012 | 2014 | ||
| Verso | 2009 | 2014 | ||
| Verso S | 2010 | 2014 | ||
| Yaris | 2011 | 2014 | ||
| Yaris Hybrid | 2012 | 2014 | ||
Note! The system is not compatible with Toyota Venza.
Scion
| Model | Model years | System/Monitor | Additional compatibility conditions | |
|---|---|---|---|---|
| From | To | |||
| FR-S | 2013 | 2015 | Bespoke | Monitors manufactured by Panasonic/Pioneer are supported. How to easily determine your monitor manufacturer. |
| iQ | 2013 | 2015 | ||
| xB | 2013 | 2015 | ||
| xD | 2013 | 2015 | ||
| tC | 2013 | 2015 | ||
Note! Monitors manufactured by FujitsuTen are not supported.
RFCC Camera Control System
Manuals
RFCC Camera Control System

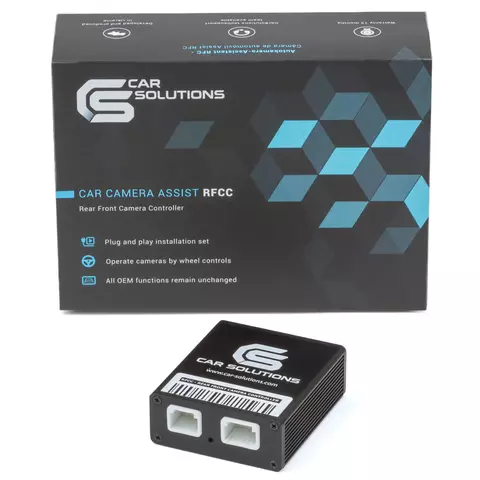

Package Content
- Main controller box

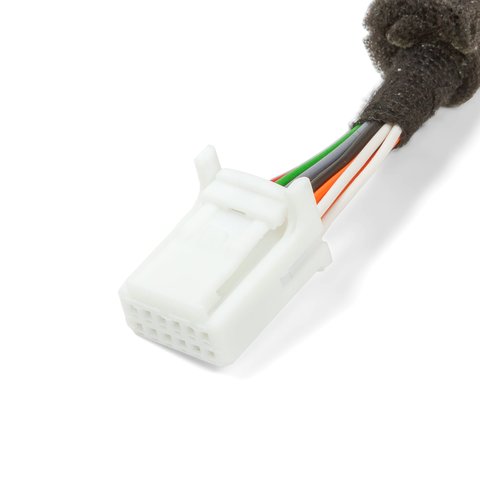

- Connection cables
- User manual
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
