RFCC TTG2 Car Camera Control System for Toyota Touch 2/Entune

RFCC TTG2 for Toyota front camera installation is a revolutionary solution that combines 3 devices: a front view camera adapter (it allows you to connect a front view camera in your car), a rear view camera adapter (it also allows you to connect a rear view camera, if it was not installed by the manufacturer) and a front camera switch (it allows you to use OEM steering wheel buttons as car camera control buttons). The system offers fast and easy Plug&Play connection without the need to cut car wiring. All OEM functions continue working as they did before installation and there's no risk of voiding car warranty. The solution is suitable for Europe, USA, Canada, Australia and New Zealand market automobiles.

RFCC system provides 2 camera control modes:

• Automatic mode: front view camera image will be displayed on the screen automatically for 30 seconds when you switch from reverse to the first gear (or Drive) or until the car reaches a speed above 20 km/h.
• Manual mode: front and rear view camera image can be switched to at any moment using "MODE", "SEEK+", "SEEK-" buttons on the steering wheel.

Operation algorithms are described in more detail in the user manual.

Features

• Fast and easy Plug&Play connection without damage to car wiring
• Front view camera connection to the OEM monitor (front view camera adapter)
• Rear view camera connection to the OEM monitor (rear view camera adapter)
• Automatic and manual camera control modes
• Use OEM steering wheel buttons to switch between front camera, rear camera and factory screen
• All factory functions continue working in the same way as before to the installation
• Car warranty is preserved

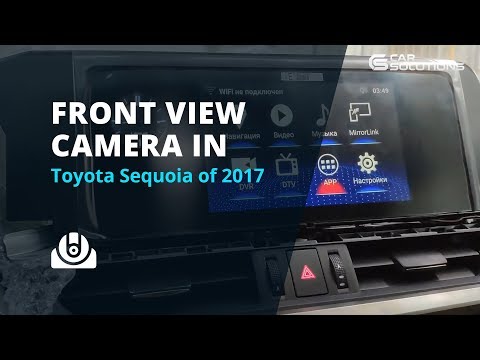

Video

The rest of the videos are available in the Video section.

Note! Only cameras in NTSC format are supported.

Note! The additionally installed rear view camera (if there was no OEM rear view camera installed by the manufacturer) should be powered from ACC line (first turn of the key), otherwise the camera input will be not active. Depending on the type of the camera to be connected, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. (see the connection diagram). In case the camera requires more than +6 V, connect the camera power to ACC line.

Note! In order to make sure that operation algorithms are working correctly, front view camera should be powered up only from the RFCC.

Compatibility

Touch 2

Entune 2.0

Note! Monitors manufactured by FujitsuTen are not supported. The system is not compatible with Toyota Venza.

Manuals

• Download user manual for RFCC camera control system

Package Content

• Main controller box
• Connection cables
