Universal RGB Low-End Video Interface

Universal RGB Low-End car video interface allows you to connect aftermarket navigation, rear view camera, external video sources, such as HD/DVD player, TV receiver to the OEM car monitor. This Low-End video interface is compatible with most car equipped with original head units and does not need any additional boards for installation.
The most frequently asked questions about video interfaces.
RGB Low-End Car Video Interface
Technical Specifications
- Inputs
- CVBS input (for external video sources) x 2
- CVBS input (for rear view camera) x 1
- Analog RGB input
- Outputs
- CVBS output (video out for installed headrest monitor) x 1
- Audio Select output x 1
- RGB output x 1
- Power
- Input power: 8 V DC ~ 18 V DC
- Consumption power: 5 W, Max
- Input mode switch
- by remote control
- by remote modes switch button
- possible to mute each input by Dip S/W
- rear view camera mode: image from the rear camera is automatically displayed when the car is reversing (it's impossible to switch rear view camera mode with the S/W toggle or remote control)
- Dimensions: 130 mm x 76 mm x 20 mm
RGB Low-End Car Video Interface
Compatible Vehicles
Main compatibility condition is a monitor with RGN input with separate composite RGBs synchronization. In case you connect to monitors with RGsB synchronization on Green, for example, BMW X5 E60, Nissan X-Trail ~2008, etc., you will need the additional module of synchronization on Green.
Main Compatibility
Car brabd | Model | Model years | |
---|---|---|---|
From | To | ||
Acura | TL/CL | 1999 | 2003 |
TL/TSX | 2004 | – | |
RL | 1998 | 2004 | |
RL | 2005 | – | |
MDX | 2001 | – | |
Audi | A2 | 2000 | 2004 |
A3 | 1998 | 2004 | |
A4 | 1998 | 2004 | |
A6 | 1998 | 2003 | |
A8 | 2001 | 2003 | |
Cabrio | 2000 | 2004 | |
RS4 | 2000 | 2004 | |
TT | 1998 | 2004 | |
BMW | 3 Series | 1997 | 2005 |
5 Series | 1997 | 2003 | |
7 Series | 1997 | 2001 | |
X5 Series | 1997 | 2005 | |
Cadillac | Escalade | 2000 | – |
Chrysler | 300C | 2004 | – |
Pacifica | 2003 | – | |
Dodge | Magnum | 2004 | – |
Honda | Accord | 2003 | 2003 |
Oddysey | 1999 | 2004 | |
Pilot | 2001 | – | |
Ridgeline | 2005 | – | |
Chevrolet | Suburban | 2003 | – |
Thaoe | 2003 | – | |
Traiblazer | 2003 | – | |
GM | Yukon | 2003 | – |
Denali | 2003 | – | |
Ford | Models with navigation systems with touch screens | 2003 | – |
Additional Compatibility
You can also connect this video interface to other car models using the additional cables:
Car brabd | Model | Model years | Monitor | Connection cable ID | |
---|---|---|---|---|---|
From | To | ||||
Infiniti | FX35 | 2004 | 2007 | – | 855105 |
FX45 | 2004 | 2007 | |||
QX56 | 2004 | – | |||
M35 | – | – | 855106 | ||
M45 | – | – | |||
Mercedes | S-Class (W220) | 2004 | 2006 | 855107 | |
CL-Class (C215) | 2004 | 2007 | |||
SL-Class | 2005 | 2007 | 6.5″ | ||
ML-Class (W164 US) | 2006 | 2008 | – | 811846 | |
R-Class (V251 US) | 2006 | – | |||
GL-Class (X164 US) | 2007 | 2008 | |||
C-Class (W203 US) | 2005 | – | |||
B-Class (W245 US) | 2005 | – | |||
Nissan | Altima | 2005 | – | 855105 | |
Pathfinder | 2005 | – |
RGB Low-End Car Video Interface
Manuals
- Download user manual for universal RGB low-end car video interface ver. 3
- Download user manual for universal RGB low-end car video interface ver. 3.1
- Download user manual for universal RGB low-end car video interface ver. 4
RGB Low-End Car Video Interface
Package Content

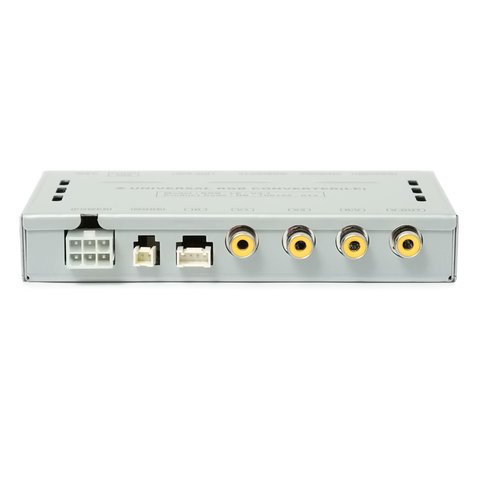

- Universal RGB Low-End Converter
- Remote control unit with IR cable or OSD keypad

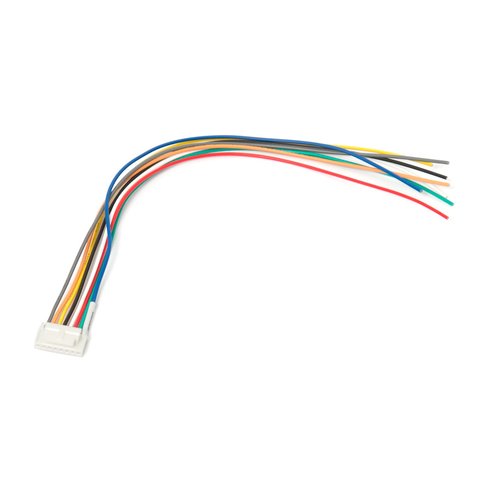

- Cable set
- Power cable

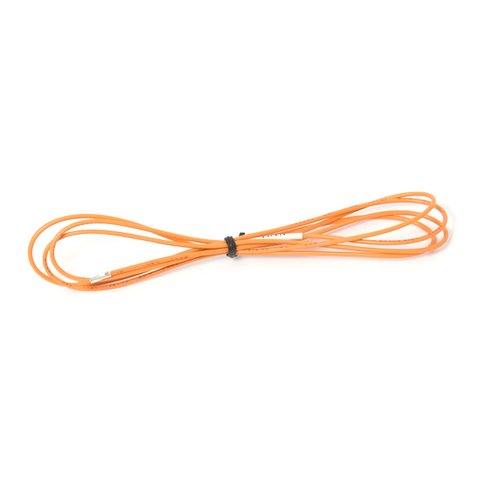

- Mode switch button with cable
- RGB output cable
- RGB OEM
- Audio Select cable
- RGB NAVI
