Universal Touch Screen Controller (UTC)

Universal touch screen controller is designed to connect 4-wire resistive touch screen panels for navigation box, CarPC, smartphone, tablet, TV receiver control on the car monitor.

The controller does not need any drivers because it's an HID device. Compatible OS: Android 2.3-7.x, Windows 32\64 bit, Linux. You also don't need any additional software to set up/calibrate the controller – all adjustments are made in standalone mode, using a micro-button on the controller and an LED.

Note! The controller should be installed directly near the touch screen panel. It's strictly forbidden to extend the cable between the touch screen panel and the controller.
The controller does not automatically determine the screen orientation.

Note! This controller is not compatible with screens that have resolutions higher than 800×480.

Touch Screen Controller
Features

• Works with 4-wire touch screen panels
• Works under Windows, Linux and Android without any drivers
• Fully standalone device. Doesn't require any software for adjustment or calibration
• Automatically defines position, size and polarity of the touch screen panel (during calibration)
• Automatically defines damage of the touch screen panel or damaged connection of the touch screen panel to the controller (during calibration)
• Two types of calibration
  • calibration when the touch screen panel size corresponds to the displayed image
  • calibration when the image size is bigger than the touch screen panel size
• Emulation of "HOME" button (for Android devices) when pressing and holding the touch screen in the middle of its upper side
• Possibility to hide the cursor when the touch screen is not used, the cursor appears only when you press the touch screen panel
• Small size of the main board (51x26 mm) allows you to install the controller in any place

Touch Screen Controller
Compatibility

• Android 2.3 - 7.x
• Linux
• Windows 32bit
• Windows 64bit

Touch Screen Controller
Manuals

• Download manual for touch screen controller

Touch Screen Controller
Package Content

• Controller main board
• Connection cables

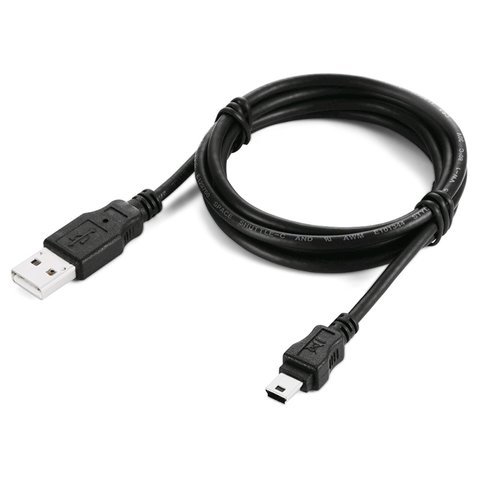

• USB->mini-USB cable
