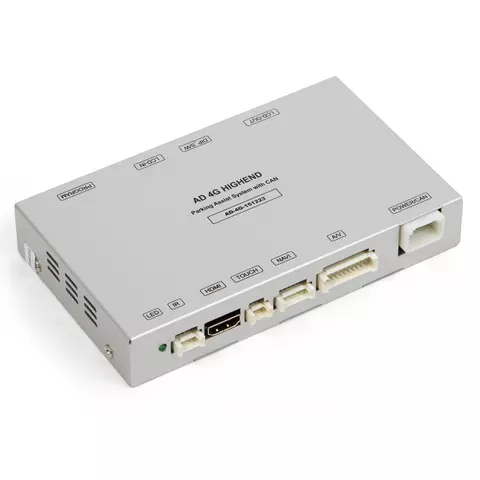

Video Interface for Audi/ Bentley/ Volkswagen/ Porsche with PAS
when in stock
Using this car video interface you will be able to connect additional video sources, such as, navigation boxes, rear view cameras, front view cameras, to the OEM monitor. It is designed for Audi, Bentley, Volkswagen, as well as Porsche with the PCM 4.0. system.
This video interface is equipped with the active parking guidelines (PAS) function.
The most frequently asked questions about video interfaces.
Video Interface for Audi
Technical Specifications
Frequently bought together
Using this car video interface you will be able to connect additional video sources, such as, navigation boxes, rear view cameras, front view cameras, to the OEM monitor. It is designed for Audi, Bentley, Volkswagen, as well as Porsche with the PCM 4.0. system.
This video interface is equipped with the active parking guidelines (PAS) function.
The most frequently asked questions about video interfaces.
Video Interface for Audi
Technical Specifications
- Inputs
- RGB input for connecting navigation
- LVDS input for connecting navigation
- Input for connecting a rear view camera
- Input for connecting a front view camera
- A/V input × 2
- Outputs
- CVBS outputs × 2
- Audio output
- LVDS output
- Mode switching
- by original button through CAN (only when CAN wires are connected)
- Possibility to skip each input source by adjusting DIP switch
- Power
- Input voltage: 8 V DC ~ 24 V DC
- Maximum consumed power: 12 W
Video Interface for Audi
Compatibility
| Brand | Model | Model years | System | Monitor size | |
|---|---|---|---|---|---|
| From | To | ||||
| Audi | A3 | 2013 | 2016 | MMI Touch MMI Radio MMI Navigation Plus |
5.8" / 7" |
| A4/Q7 | 2015 | – | 7" | ||
| A6 | 8" | ||||
| Bentley | Bentayga | 2017 | 8" | ||
| Porsche | Macan | 2016 | PCM 4.0 | 7" | |
| Macan S | |||||
| Macan GTS | |||||
| 991.2 | |||||
| 911 | |||||
| Volkswagen | Golf | 2013 | 2015 | Composition Media Discover Media Discover Pro |
5.8" / 6.5" / 8" |
| Polo | 6.5" | ||||
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Video Interface for Audi
Manuals
Video Interface for Audi
Package Content
- Video interface
- OSD keypad
- Cable set:
- RGB NAVI cable
- LVDS OUT cable
- A/V cable
- Power cable
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
