Overview
0.45 kg Warranty: 12 months
Car video interface for Cadillac Escalade EXT / ESVe / SUV / SLS / STS / STSV / Hybrid / Platinum allows connecting external video sources and also Car PC to OEM car monitor.
Description
Car video interface for Cadillac Escalade helps you to connect external video sources such as DVD player, TV tuner, rear view camera and others to OEM car monitor. It also allows connecting such vital business assistant as Car PC.
Car Video Interface for Cadillac Escalade
Technical Specifications
- NTSC/PAL video system
- Car PC touch control
- Parking guidelines supported
-
Input:
- Video DATA (OEM video input)
- Analog RGBCs (for navigation system )
- PC RGBHV (for CarPC)
- REAR-C input (for external rear view camera)
- CVBS (1, 2) (for external video source)
- Touch In (for OEM touch screen panel)
-
Output:
- 2 x A/VOUT (video/audio output for headrest monitors)
- Touch OUT to Navi (OEM touch screen panel connection)
- Touch OUT OEM (connection to vehicle main PCB)
- Monitor Output (video output for connection to OEM display LCD panel)
-
Power
- Input power : 7 V DC ~ 18 V DC
- Consumption power : 1.8 W @ 12 V
-
Input mode switch
- Video input disable: possible to skip each input source by OSD menu settings.
- Control by using the remote controller.
- Possible to switch between modes by remote mode switch button.
Car Video Interface for Cadillac Escalade
Compatibility
| Cadillac model | Starting model year |
|---|---|
| Escalade | 2007 |
| Escalade EXT | |
| Escalade ESVe Limousine | |
| Escalade Hybrid | 2009 |
| Escalade Platinum | 2008 |
| Escalade SUV | 2011 |
| EscaladeSLS | 2007 |
| Escalade STS | |
| Escalade STSV | 2006 |
Car Video Interface for Cadillac Escalade
Manuals
- Guides
- Drivers
Car Video Interface for Cadillac Escalade
Package Content

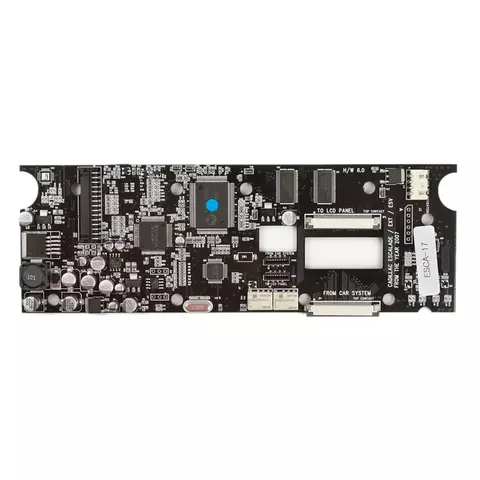

- Car video interface main board
- Sub-board for VGA connection
- Main cable
- Flexible cable
- Flexible flat cable × 2
- Touch screen USB controller
- Remote control unit with IR cable or OSD keypad
* Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Read more
Description
Car video interface for Cadillac Escalade helps you to connect external video sources such as DVD player, TV tuner, rear view camera and others to OEM car monitor. It also allows connecting such vital business assistant as Car PC.
Car Video Interface for Cadillac Escalade
Technical Specifications
- NTSC/PAL video system
- Car PC touch control
- Parking guidelines supported
- Input:
- Video DATA (OEM video input)
- Analog RGBCs (for navigation system )
- PC RGBHV (for CarPC)
- REAR-C input (for external rear view camera)
- CVBS (1, 2) (for external video source)
- Touch In (for OEM touch screen panel)
- Output:
- 2 x A/VOUT (video/audio output for headrest monitors)
- Touch OUT to Navi (OEM touch screen panel connection)
- Touch OUT OEM (connection to vehicle main PCB)
- Monitor Output (video output for connection to OEM display LCD panel)
- Power
- Input power : 7 V DC ~ 18 V DC
- Consumption power : 1.8 W @ 12 V
- Input mode switch
- Video input disable: possible to skip each input source by OSD menu settings.
- Control by using the remote controller.
- Possible to switch between modes by remote mode switch button.
Car Video Interface for Cadillac Escalade
Compatibility
| Cadillac model | Starting model year |
|---|---|
| Escalade | 2007 |
| Escalade EXT | |
| Escalade ESVe Limousine | |
| Escalade Hybrid | 2009 |
| Escalade Platinum | 2008 |
| Escalade SUV | 2011 |
| EscaladeSLS | 2007 |
| Escalade STS | |
| Escalade STSV | 2006 |
Car Video Interface for Cadillac Escalade
Manuals
- Guides
- Drivers
Car Video Interface for Cadillac Escalade
Package Content
- Car video interface main board
- Sub-board for VGA connection
- Main cable
- Flexible cable
- Flexible flat cable × 2
- Touch screen USB controller
- Remote control unit with IR cable or OSD keypad
* Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
