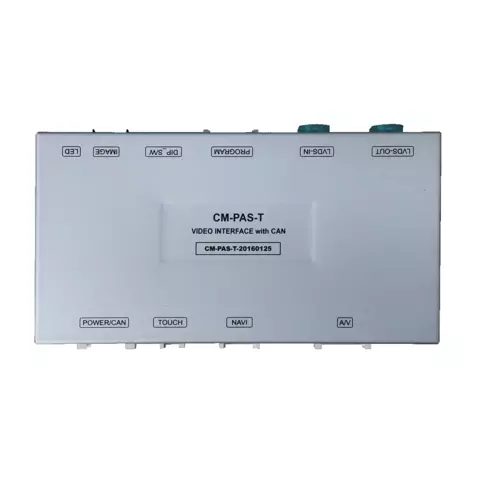

Car video interface is used for external video sources connection
Car video interface is used for additional video devices connection, for example, navigation boxes, rear view cameras, the OEM monitor. This video adapter is compatible with Chrysler 300C.
This video interface is equipped with parking guidelines feature.
Technical Specifications
- Inputs
- RGB-input for navigation system connection
- Rear view camera input
- A/V-input × 2
- Outputs
- CVBS-output × 2
- Audio output
- LCD-output
- Switching modes
- using OEM buttons via CAN bus
(only if CAN wiring is connected)
- Selective connection of input signals using DIP switches
- Power
- Input voltage: 8 V DC ~ 24 V DC
- Max. consumed power: 12 W
Compatibility
| Model |
Production year |
| From |
To |
| 300C |
2009 |
2015 |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
Package Content
- Video interface
- OSD-board
- Cables set:
- RGB NAVI-cable
- LVDS-cable
- A/V-cable
- Power cable
- Touch-cable adapter
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
