Video Interface for Dodge/Chrysler/Fiat
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 230.00
Add to cart
Overview
1.05 kg
Availability in stock:
HK
Car video interface for navigation box, rear view camera, DVD / HD player connection to OEM monitors of Dodge Charger / Journey, Chrysler 300, Fiat Freemont.
Suggest your price
Description
Car video interface is used for external video sources connection to the OEM monitor with their touch screen control. These can be navigation box, rear view camera, DVD player or car HD player. This video interface is also equipped with additional RGB input for displaying image from the connected smartphone. Video adapter is compatible with Dodge, Chrysler, Fiat models.
The most frequently asked questions about video interfaces.
Video Interface for Dodge
Technical Specifications
- Inputs
- RGB input for navigation system
- RGB input for smartphone connection adapter
- CVBS input for rear view camera
- A/V input (NTSC&PAL) × 3
- Input for LCD
- Outputs
- CVBS outputs (to connect headrest monitors) ×2
- Audio output
- Output for OEM monitor connection
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3 W
- Sources switching
- by original button
- by remote control
- by remote modes switch button
- on the touch screen
- Possible to skip AV source by adjusting DIP S/W
Video Interface for Dodge
Compatibility
Chrysler Compatibility
| Model | Model years | Monitor size | |
|---|---|---|---|
| From | To | ||
| 300 | 2011 | – | 8.4″ |
| 300 Glacier AWD | 2013 | ||
| 300 Limited | 2013 | ||
| 300 Motown Edition | 2013 | ||
| 300CRT8 | 2012 | ||
| 300C | 2012 | ||
| 300C John Varvatos Limited Edition | 2013 | ||
| 300C Luxury Series | 2012 | ||
| 300S | 2012 | ||
Chrysler 300 head unit
Dodge Compatibility
| Model | Model years | Monitor size | |
|---|---|---|---|
| From | To | ||
| Charger | 2011 | – | 8.4″ |
| Charger SRT8 | 2012 | ||
| Charger Daytona | 2012 | ||
| Charger Mopar | 2011 | ||
| Dart | 2013 | ||
| Journey | 2011 | ||
| Ram 1500 | 2013 | ||
| Ram Heavy Duty | 2013 | ||
| SRT Viper | 2013 | ||
| SRT Viper GTS | 2013 | ||
| SRT Viper GTS-R | 2013 | ||
| SRT Viper GTS Launch Edition | 2013 | ||
Dodge Charger head unit
Fiat Compatibility
| Model | Model years | Monitor size | |
|---|---|---|---|
| From | To | ||
| Freemont | 2012 | – | 8.4″ |
| Freemont AWD | 2012 | ||
| Viaggio | 2013 | ||
Fiat head unit
Video Interface for Dodge
Manuals
Video Interface for Dodge

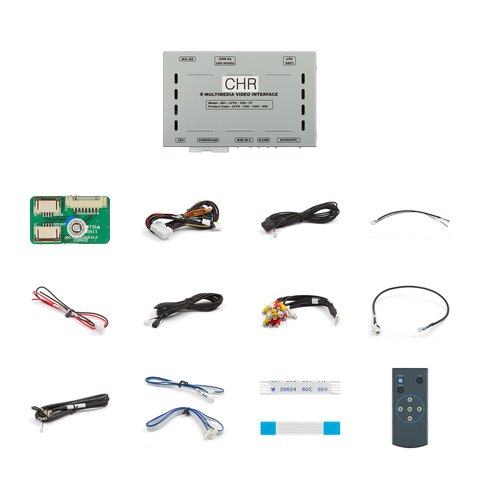

Package Content
- Video interface module
- Sub-board (2)
- Remote control
- Cables set:
- LVDS cable
- RGB cable
- A/V cable
- Power cable
- Cable with IR receiver for remote control
- Remote mode switch button
- Power cable for rear view camera
- Cable for LCD
- Touch In cable
- Touch Out cable
- FFC
Read more
Frequently bought together
Add to wishlist
Car Wired / Wireless Mirroring System with A/V and HDMI Outputs
USD 90.00
USD 75.00
Add to wishlist
Add to cart
Adapter for wired and wirelees connection of iOS and Android devices to the car multimedia system. Allows you to play video and audio on the connected monitor. Supports screens mirroring to display navigation, menu, applications, etc. on the connected monitor.
Availability in stock:
HK
ID: 905341 0.5 kg
Add to wishlist
QCAST2 Smartphone/iPhone Wi-Fi Mirror Car Adapter with HDMI Output
USD 145.00
USD 80.00
Add to wishlist
Add to cart
Adapter for connecting iOS and Android devices to the car multimedia system. Supports screen mirroring function to display navigation, menu, applications, etc. on the connected monitor.
Availability in stock:
HK
ID: 876221 0.4 kg
Description
Car video interface is used for external video sources connection to the OEM monitor with their touch screen control. These can be navigation box, rear view camera, DVD player or car HD player. This video interface is also equipped with additional RGB input for displaying image from the connected smartphone. Video adapter is compatible with Dodge, Chrysler, Fiat models.
The most frequently asked questions about video interfaces.
Video Interface for Dodge
Technical Specifications
- Inputs
- RGB input for navigation system
- RGB input for smartphone connection adapter
- CVBS input for rear view camera
- A/V input (NTSC&PAL) × 3
- Input for LCD
- Outputs
- CVBS outputs (to connect headrest monitors) ×2
- Audio output
- Output for OEM monitor connection
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3 W
- Sources switching
- by original button
- by remote control
- by remote modes switch button
- on the touch screen
- Possible to skip AV source by adjusting DIP S/W
Video Interface for Dodge
Compatibility
Chrysler Compatibility
| Model | Model years | Monitor size | |
|---|---|---|---|
| From | To | ||
| 300 | 2011 | – | 8.4″ |
| 300 Glacier AWD | 2013 | ||
| 300 Limited | 2013 | ||
| 300 Motown Edition | 2013 | ||
| 300CRT8 | 2012 | ||
| 300C | 2012 | ||
| 300C John Varvatos Limited Edition | 2013 | ||
| 300C Luxury Series | 2012 | ||
| 300S | 2012 | ||
Chrysler 300 head unit
Dodge Compatibility
| Model | Model years | Monitor size | |
|---|---|---|---|
| From | To | ||
| Charger | 2011 | – | 8.4″ |
| Charger SRT8 | 2012 | ||
| Charger Daytona | 2012 | ||
| Charger Mopar | 2011 | ||
| Dart | 2013 | ||
| Journey | 2011 | ||
| Ram 1500 | 2013 | ||
| Ram Heavy Duty | 2013 | ||
| SRT Viper | 2013 | ||
| SRT Viper GTS | 2013 | ||
| SRT Viper GTS-R | 2013 | ||
| SRT Viper GTS Launch Edition | 2013 | ||
Dodge Charger head unit
Fiat Compatibility
| Model | Model years | Monitor size | |
|---|---|---|---|
| From | To | ||
| Freemont | 2012 | – | 8.4″ |
| Freemont AWD | 2012 | ||
| Viaggio | 2013 | ||
Fiat head unit
Video Interface for Dodge
Manuals
Video Interface for Dodge
Package Content
- Video interface module
- Sub-board (2)
- Remote control
- Cables set:
- LVDS cable
- RGB cable
- A/V cable
- Power cable
- Cable with IR receiver for remote control
- Remote mode switch button
- Power cable for rear view camera
- Cable for LCD
- Touch In cable
- Touch Out cable
- FFC
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
