Car video interface allows you to connect additional video devices, such as navigation boxes or rear view cameras to the OEM car monitor. This video adapter fits Fiat cars of the 500 series.
The most frequently asked questions about video interfaces.

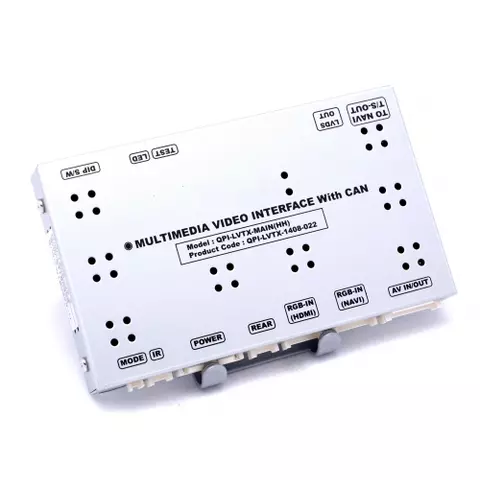

Video Interface for Fiat
Main Features
- Active parking guidelines (PAS)
- Automatic display of the image from the rear view or front view camera (depends on the gear)
- Switch between connected devices using OEM buttons
Video Interface for Fiat
Technical Specifications
- Inputs
- RGB input for navigation × 1
- AV × 3
- CVBS × 1 (for rear view camera)
- Outputs
- Mode switching
- OEM button through CAN bus
(only if CAN wiring is connected)
- possible to switch between AV sources with DIP S/W
- with remote control or mode switch button
- General
- Output voltage: 8 V DC ~ 18 V DC
- Maximum consumed power: 5 W
- Dimensions
Video Interface for Fiat
Compatibility
| Brand |
Model |
Model years |
System |
Monitor size |
| From |
To |
| Fiat |
500 |
2015 |
– |
Uconnect Radio |
5″ |
| 500c |
| 500x |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Video Interface for Fiat
Manuals
Video Interface for Fiat
Package Content
- Video interface
- Sub-board
- Remote control
- Cable set:
- Power cable
- LVDS cable
- FPC cable – 3 pc.
- A/V cable
- R-CAM cable
- TOUCH cable
- NAVI cable
- IR cable
- Cable with mode switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
