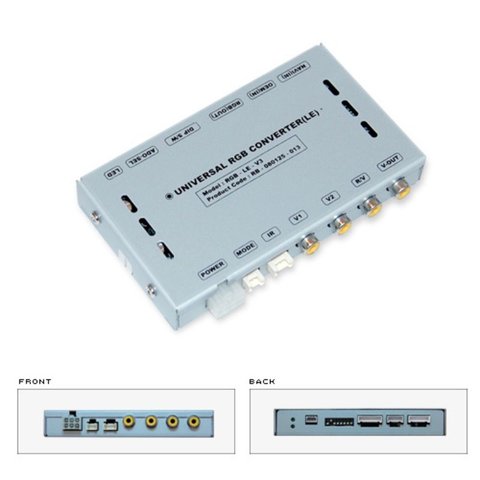

Car Video Interface for Infiniti M consists of a board, cables, sub-board, remote control and a portable mode switch. The power cable has a filter to protect the board from damages. The user can control functions by means of DIP switch.
Car Video Interface (Media Key) helps to use A/V sources such as DVD player, DMB, Ipod Video, Video game consol or any other video devices on your built-in car monitor. It offers easy installation, excellent stability and functionality. The Media Key is the best choice for your car video entertainment and navigation system.
The most frequently asked questions about video interfaces.
Specifications
- Input: MULTI VIDEO INTERFACE
- CVBS Input (External video source) x 2
- Rear view camera: CVBS input x 1
- Analog RGB Input (Car commander original monitor output) x 1
- Analog RGB Input (Navigation System output -option) x 1
- Output
- CVBS output (video output for installing headrest monitor) x 1
- RGB output (LCD operation) x 1
- Audio select output x 2
- Power
- Input power: 8 V DC ~ 24 V DC
- Max. consumed power: 12 W
- Switch Input Mode
- NAVI/CVBS1, 2 mute functions: possible to make each input mute by operating Dip S/W.
- Possible to switch input mode with the remote control
- Possible to switch input mode with the source toggle
- Rear View Camera mode: When to sense rear gear power, the rear view camera mode is switching on (It's impossible to switch rear view camera mode with the Toggle S/W or the Remote control)
Board dimensions: 131mm × 75mm × 21mm
Compatible vehicles
Package content
- Car Video Interface (Media Key) board for Infiniti M
- Remote control unit with IR cable or OSD keypad
- Sub-board
- Cable set:
- Power Cable - 1 pc.
- Toggle Switch - 1 pc.
- RGB (Out) Cable - 1 pc.
- RGB OEM cable - 1 pc.
- Audio Select Cable - 1 pc.
- RGB NAVI cable - 1 pc.
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
