Video Interface for Jeep Cherokee, Grand Cherokee and Dodge Durango
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 249.00
Overview
1 kg Warranty: 12 months
Allows connection of additional video sources, such as, a rear view camera or a navigation system. Supported head units: Uconnect 8.4AN/RA4. Read more
Description

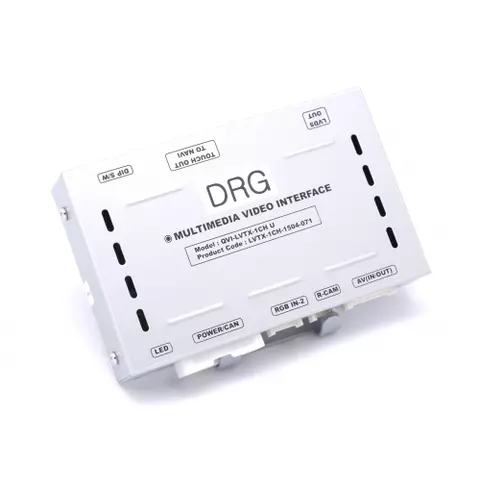

Car video interface allows you to connect additional video devices, such as navigation boxes or rear view cameras to the OEM car monitor. This adapter fits Jeep and Dodge cars with Uconnect 8.4AN/RA4 system.
The most frequently asked questions about video interfaces.
Video Interface for Jeep
Main Features
- Automatic display of the image from the rear view or front view camera (depends on the gear)
- Switch between connected devices using OEM buttons
Video Interface for Jeep
Technical Specifications
- Inputs
- RGB input for navigation × 1
- AV × 3
- CVBS × 1 (for rear view camera)
- LCD × 1
- Outputs
- LCD output
- CVBS ×2
- Linear audio output
- Mode switching
- OEM button through CAN bus (only if CAN wiring is connected)
- possible to switch between AV sources with DIP S/W
- with remote control or mode switch button
- General
- Output voltage: 8 V DC ~ 18 V DC
- Maximum consumed power: 4 W
- Dimensions
- 125 mm × 105 mm × 21 mm
Video Interface for Jeep
Compatibility
| Brand | Model | Model years | System | |
|---|---|---|---|---|
| From | To | |||
| Dodge | Durango | 2014 | – | Uconnect 8.4AN/RA4 |
| Jeep | Cherokee | 2015 | ||
| Grand Cherokee | ||||
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Video Interface for Jeep
Manuals
Video Interface for Jeep
Package Content
- Video interface
- Sub-board
- Remote control
- Cable set:
- Power cable
- LVDS cable
- A/V cable
- FPC cable – 2 pc.
- RGB cable
- TOUCH OUT cable
- REAR cable
- IR cable
- Cable with mode switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
