Overview
1.1 kg Warranty: 12 months
Car video interface for Land Rover Discovery 4 allows connecting external video sources, such as DVD player, TV tuner, rear view camera, etc. to car on-board monitor.
Description
Car video interface for Land Rover Discovery 4 allows connecting external video sources, such as DVD player, TV tuner, rear view camera, etc. to car on-board monitor.
Car Video Interface for Land Rover Discovery 4
Main Features
- Improved display quality.
- Working on NTSC, PAL.
- External touch screen available by NAVI-SEL.
- AV1-SEL, REAR-SEL added (for rear camera power)
- Rear camera detection by CAN
- Possible to adjust displayed RGB, AV sources in factory mode.
- Possible to display OSD with no connection of AV sources.
Car Video Interface for Land Rover Discovery 4
Technical Specifications
Input: multi video interface) - A/V input (external video source) × 3
- CVBS input (rear camera source) × 1
- Analog RGB input (navigation system output) × 1
- LCD input (car system input) × 1
- Audio select × 3
- 12V SEL × 3
- Input power: 8 V DC ~ 18 V DC
- Max. consumption power: 12 W
- Input video mute function: possible to mute each input by operating Dip S/W
- Possible to change input mode with the toggle switch
- Possible to switch mode through CAN
Car Video Interface for Land Rover Discovery 4
Manuals
Car Video Interface for Land Rover Discovery 4
Package Content
- Car video interface main board
- Remote control unit
- Sub-board
- Touch board
- Cables set

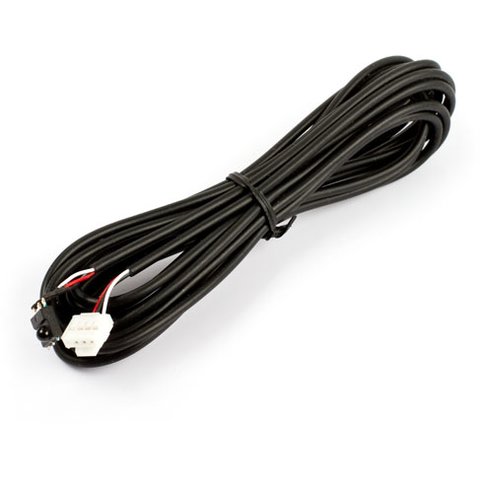

- Power cable

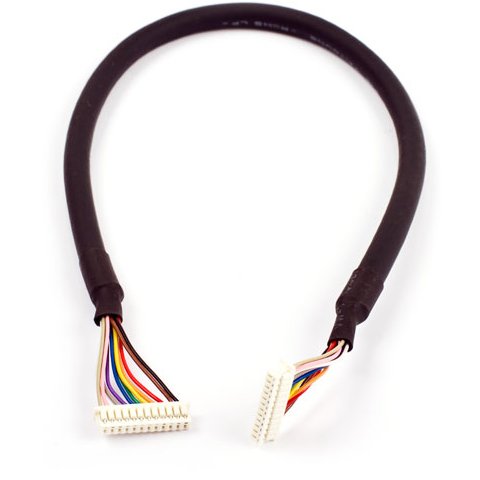

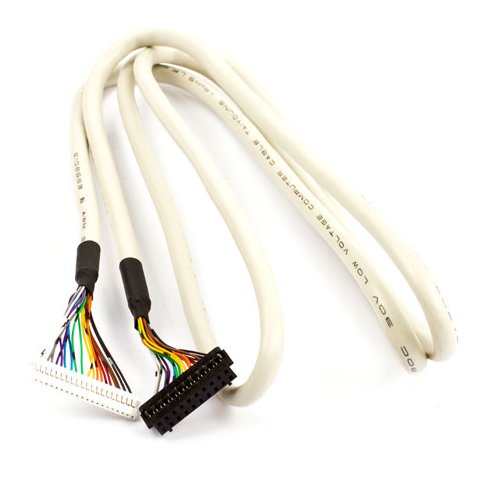

- LVDS cable
- A/V cable
- Navi cable
- Ground cable
- Toggle S/W

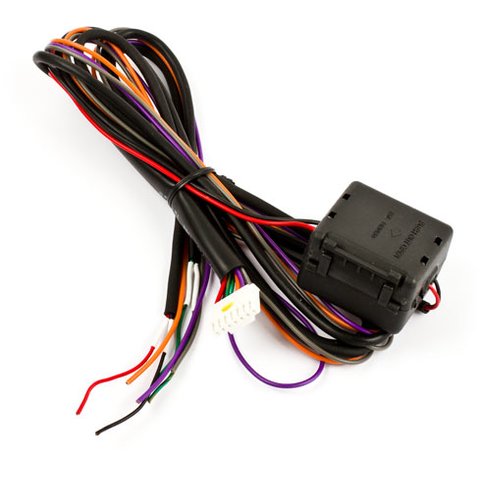

- SEL (12V) cable
Read more
Description
Car video interface for Land Rover Discovery 4 allows connecting external video sources, such as DVD player, TV tuner, rear view camera, etc. to car on-board monitor.
Car Video Interface for Land Rover Discovery 4
Main Features
- Improved display quality.
- Working on NTSC, PAL.
- External touch screen available by NAVI-SEL.
- AV1-SEL, REAR-SEL added (for rear camera power)
- Rear camera detection by CAN
- Possible to adjust displayed RGB, AV sources in factory mode.
- Possible to display OSD with no connection of AV sources.
Car Video Interface for Land Rover Discovery 4
Technical Specifications
Input: multi video interface)
- A/V input (external video source) × 3
- CVBS input (rear camera source) × 1
- Analog RGB input (navigation system output) × 1
- LCD input (car system input) × 1
- Audio select × 3
- 12V SEL × 3
- Input power: 8 V DC ~ 18 V DC
- Max. consumption power: 12 W
- Input video mute function: possible to mute each input by operating Dip S/W
- Possible to change input mode with the toggle switch
- Possible to switch mode through CAN
Car Video Interface for Land Rover Discovery 4
Manuals
Car Video Interface for Land Rover Discovery 4
Package Content
- Car video interface main board
- Remote control unit
- Sub-board
- Touch board
- Cables set
- Power cable
- LVDS cable
- A/V cable
- Navi cable
- Ground cable
- Toggle S/W
- SEL (12V) cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
