Video Interface for Lexus IS250, IS300, GX460, NX300h, RX270, LX570 of 2014– MY
id: 859392
Video Interface for Lexus IS250, IS300, GX460, NX300h, RX270, LX570 of 2014– MY
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 260.00
Notify
when in stock
when in stock
Overview
1.1 kg Warranty: 12 months

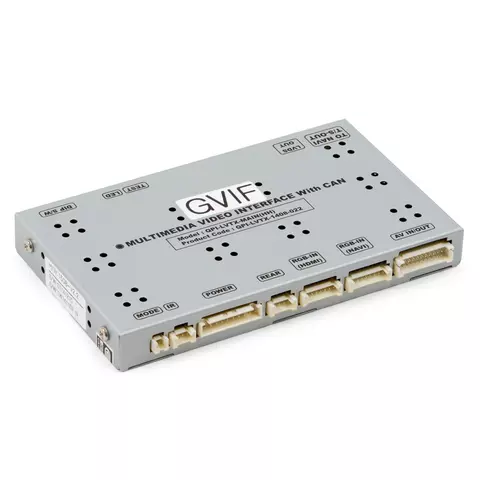

Video adapter to connect aftermarket navigation, camera and video sources to the OEM display of Lexus starting from 2014 model year.
Description
Car video interface serves to connect external video sources, such as navigation box, rear view camera, DVD/HD player, TV tuner, Android TV boxes etc. to OEM car monitor. This device is designed for Lexus of 2014 and following model years.
The device is equipped with active parking guidelines display function.
Note! Active parking guidelines function and mode switching with OEM button does not work in cars equipped with center console controller!
Car Video Interface for Lexus
Technical Specifications
- Inputs
- Analog RGB input for navigation connection
- CVBS input for rear view camera
- A/V input x 3
- Input for OEM monitor
- Outputs
- AV outputs for headrest monitors x 2
- Output for OEM monitor
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3.5 W
- Mode switching
- by OEM button (MENU)*
- by remote control
- by remote switch button
- possible to skip AV source by DIP S/W
- automatic display of the image from the rear view camera when reversing (if connected via CAN)
- Board dimensions: 125 mm × 105 mm × 21 mm
*Depending on the car model.
Car Video Interface for Lexus
Compatibility
| Model | Model years | |
|---|---|---|
| From | To | |
| IS250 | 2014 | – |
| IS300 | 2014 | – |
| GX460 | 2014 | – |
| NX300h | 2014 | – |
| RX270 | 2014 | – |
| LX570 | 2014 | – |
Active Parking Guidelines (PAS) and Mode Switching
| Compatible | |
|---|---|
| Cars with remote touch control |
|
| Cars with remote touchpad |  |
| Not compatible | |
| Cars with center console controller |  |
Car Video Interface for Lexus
Manuals
- Download user manual for Lexus video interface (rev. 1)
- Download user manual for Lexus video interface (rev. 2)
Car Video Interface for Lexus
Package Content
- Car video interface main module
- Sub-board
- Remote control unit with IR cable or OSD keypad
- Cable set:
- LVDS cable
- LCD cable
- RGB cable
- A/V cable
- Power cable (24 pin)
- Cable with mode switch button
- Touch out cable
- Rear camera power cable
- CAN cable
Read more
Description
Car video interface serves to connect external video sources, such as navigation box, rear view camera, DVD/HD player, TV tuner, Android TV boxes etc. to OEM car monitor. This device is designed for Lexus of 2014 and following model years.
The device is equipped with active parking guidelines display function.
Note! Active parking guidelines function and mode switching with OEM button does not work in cars equipped with center console controller!
Car Video Interface for Lexus
Technical Specifications
- Inputs
- Analog RGB input for navigation connection
- CVBS input for rear view camera
- A/V input x 3
- Input for OEM monitor
- Outputs
- AV outputs for headrest monitors x 2
- Output for OEM monitor
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3.5 W
- Mode switching
- by OEM button (MENU)*
- by remote control
- by remote switch button
- possible to skip AV source by DIP S/W
- automatic display of the image from the rear view camera when reversing (if connected via CAN)
- Board dimensions: 125 mm × 105 mm × 21 mm
*Depending on the car model.
Car Video Interface for Lexus
Compatibility
| Model | Model years | |
|---|---|---|
| From | To | |
| IS250 | 2014 | – |
| IS300 | 2014 | – |
| GX460 | 2014 | – |
| NX300h | 2014 | – |
| RX270 | 2014 | – |
| LX570 | 2014 | – |
Active Parking Guidelines (PAS) and Mode Switching
| Compatible | |
|---|---|
| Cars with remote touch control | |
| Cars with remote touchpad | |
| Not compatible | |
| Cars with center console controller | |
Car Video Interface for Lexus
Manuals
- Download user manual for Lexus video interface (rev. 1)
- Download user manual for Lexus video interface (rev. 2)
Car Video Interface for Lexus
Package Content
- Car video interface main module
- Sub-board
- Remote control unit with IR cable or OSD keypad
- Cable set:
- LVDS cable
- LCD cable
- RGB cable
- A/V cable
- Power cable (24 pin)
- Cable with mode switch button
- Touch out cable
- Rear camera power cable
- CAN cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
