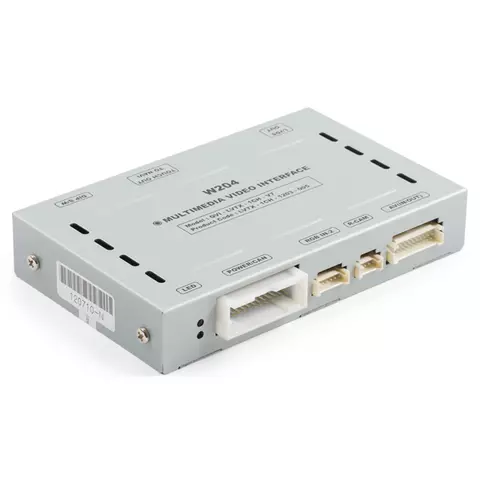

Video Interface for Mercedes-Benz C-Class (W204) / E-Class of 2012 MY

ID: 835972
ID: 835972 1 kg
Car video interface for Mercedes-Benz C-Class of 2012 model years equipped with 6.5″/ 7″displays and also fits new E-Class cars with 5.8″ / 6.5″/ 7″ displays.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

Car video interface serves to connect external video sources, such as navigation box, rear view camera, DVD player, TV tuner, etc. to build-in car monitor. This device is designed for Mercedes-Benz C-Class of 2012 model years equipped with 6.5″/ 7″displays and also fits new E-Class cars.

Car Video Interface for Mercedes-Benz W204
Technical Specifications

  • Input: multi video interface
    • Analog RGB input (synchronization on green) x 1
    • CVBS input for rear view camera x 1
    • A/V input (NTSC & PAL) x 3
    • Input for LCD x 1
  • Output
    • CVBS outputs (for headrest monitors) x 2
    • Audio output x 1
    • Output for OEM LCD connection x 1
  • Power
    • Input power: 8 V DC ~ 16 V DC
    • Max. consumed power: 4 W
  • Mode switching
    • by remote control
    • by remote switch button
    • by original button through CAN (only when CAN wires are connected)
    • Possible to skip AV source by DIP S/W.
  • Board dimensions: 125 mm × 105 mm × 21 mm

Car Video Interface for Mercedes-Benz W204
Compatibility

Class Body type Monitor size Model year
C W204 5.8″ 2012
6.5″
7″
New E - 5.8″
6.5″
7″
M W166 5.8″
6.5″
7″

Car Video Interface for Mercedes-Benz W204
Manuals

Car Video Interface for Mercedes-Benz W204
Package Content

  • Car video interface main module
  • Remote control unit with IR cable or OSD keypad
  • Sub-board
  • Cable set:
    • LVDS cable
    • LCD cable
    • RGB cable
    • A/V cable
    • Power cable (24 pin)
    • Cable with mode switch button
    • Touch out cable
    • Touch in cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Mercedes-Benz
Video Interface is compatible with the following models of Cars
  • Mercedes-Benz W204
  • Mercedes-Benz W212
  • Mercedes-Benz W166
Rear view camera input
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
CAN bus support
  • Yes
Modes switch by OEM buttons
  • Yes
Adaptive parking guidelines
  • No
Touch screen control of the connected devices
  • Yes
Built-in navigation
  • No
