Video Interface for Mercedes-Benz E Class (W213) of 2016– MY

ID: 869540
Bestseller
ID: 869540 1 kg
In stock: HK
Allows connection of a navigation box, front view or rear view camera. Active parking guidelines function (PAS). Supported head units: NTG 5.5.
USD 249.00
Add to Cart
USD 249.00
Add to Cart
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Note! This item is shipped within 15 working days.
Overview
Specifications
Delivery
Payment
Warranty
Overview

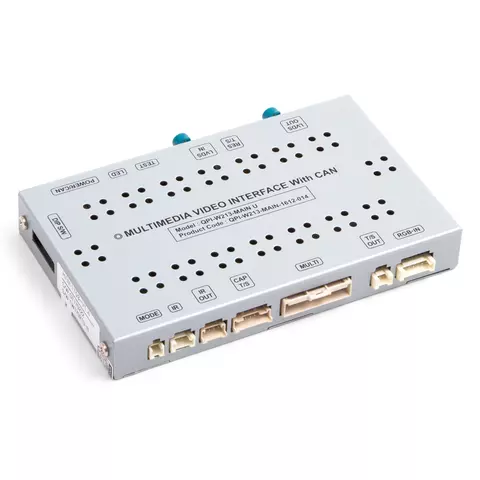

Car video interface allows you to connect additional video devices, such as navigation boxes or rear view cameras to the OEM car monitor. This adapter fits Mercedes-Benz cars of E class (W213).

The most frequently asked questions about video interfaces.

Video Interface for Mercedes-Benz
Main Features

  • Active parking guidelines (PAS)
  • Support of PDC function (in connection with OEM parktronic system)
  • Automatic display of the image from the rear view or front view camera (depends on the gear)
  • Switch between connected devices using OEM buttons

Video Interface for Mercedes-Benz
Technical Specifications

  • Inputs
    • RGB input for navigation × 1
    • AV × 2
    • CVBS × 1 (for rear view camera)
    • CVBS × 1 (for front view camera)
  • Outputs
    • LCD output
  • Mode switching
    • OEM button through CAN bus (only if CAN wiring is connected)
    • possible to switch between AV sources with DIP S/W
    • with remote control or mode switch button
  • Power
    • Output voltage: 8 V DC ~ 18 V DC
    • Maximum consumed power: 5 W

Video Interface for Mercedes-Benz
Compatibility

Class Body Model year Head unit Monitor size
From To
E W213 2016 NTG 5.5 8.4″/ 12.3″


Mercedes-Benz head unit

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Video Interface for Mercedes-Benz
Manuals

Video Interface for Mercedes-Benz
Package Content

  • Video interface
  • Remote control
  • Cable set:
    • Power cable
    • CAN IN/OUT cable
    • RGB cable
    • RGB (Q-ROI) cable
    • AV cable
    • CAP TOUCH cable
    • Uart TOUCH cable
    • TOUCH IN cable
    • IR OUT cable
    • IR cable
    • Cable with input switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Mercedes-Benz
Video Interface is compatible with Head Units
  • NTG 5.5
Touch screen control of the connected devices
  • Yes
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
DVD/HD/TV connection input
  • Yes
Navigation input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
