Car video interface is designed for Mercedes-Benz E-Class (W211) but it also fits other classes and models of Mercedes-Benz. Car video interface allows connecting and using external video sources with your built-in car monitor. The device offers easy and convenient installation.
Note!Video interface is not compatible with the monitors, equipped with Sharp LCD screen.
Car Video Interface for Mercedes-Benz W211
Technical Specifications
Car video interface is designed for Mercedes-Benz E-Class (W211) but it also fits other classes and models of Mercedes-Benz. Car video interface allows connecting and using external video sources with your built-in car monitor. The device offers easy and convenient installation.
Note!Video interface is not compatible with the monitors, equipped with Sharp LCD screen.
Car Video Interface for Mercedes-Benz W211
Technical Specifications
- Input: multi video interface
- CVBS input (for external video source) x 2
- CVBS input (for rear view camera) : x 1
- Analog RGB input (for car original monitor): x 1
- Analog RGB input (for navigation system): x 1
- Output
- CVBS output (video output for headrest monitor installation) x 1
- Audio select output 3-in-1
- LCD output (LCD operation) x 1
- Power
- Input power: 8 V DC ~ 24 V DC
- Max. consumed power: 5 W
- Mode Switching
- Input video MUTE function: possible to make each input mute by operating Dip S/W
- Possible to switch input mode with the remote control or source toggle
- Rear view camera mode : rear view camera is switched when the vehicle is reversing (impossible to switch to the rear mode with the toggle or the remote control)
- Board dimensions: 129 mm x 75 mm x 21 mm
Car Video Interface for Mercedes-Benz W211
Compatibility
Class | Body type | Model years | |
---|---|---|---|
From | To | ||
E | W211 | 2003 | 2008 |
CLS | W219 | 2006 | 2008 |
SLK | R171 | 2005 | 2008 |
ML | W164 EURO Ver. | 2006 | 2008 |
CLK | W209 | 2005 | 2008 |
GL | X164 | 2007 | 2008 |
C | W203 | 2005 | 2008 |
B | 2003 | 2008 |
Note!Video interface is not compatible with the monitors, equipped with Sharp LCD screen.
Car Video Interface for Mercedes-Benz
Manuals
- Download user manual for Mercedes-Benz video interface (version 3.1.2)
- Download user manual for Mercedes-Benz video interface (version 3.1)
- Download installation guide for Mercedes-Benz video interface
Car Video Interface for Mercedes-Benz W211
Package Content
- Car video interface main board
- Remote control unit

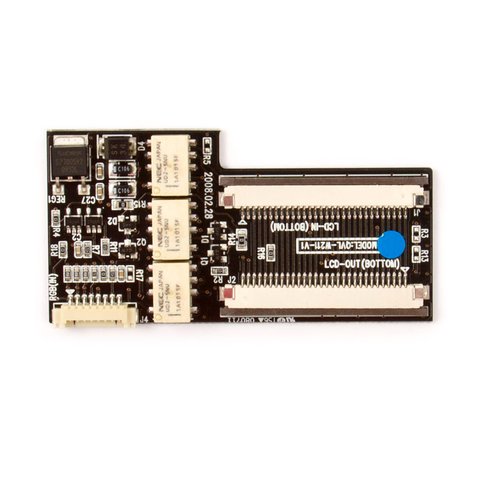

- Sub-board
- Cable set:
- RGB (Out) cable
- Power cable with protective filter
- RGB OEM cable

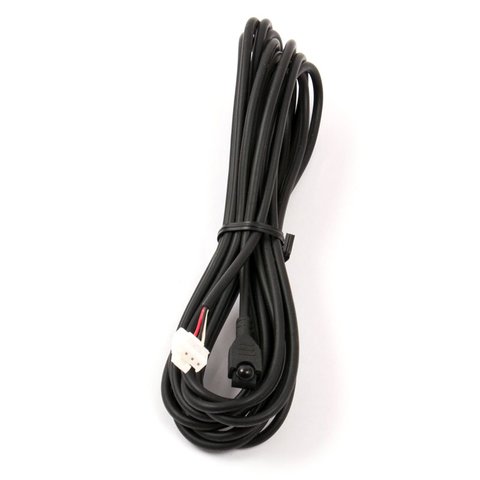

- IR cable for remote control
- Mode toggle switch
- Audio select cable
- RGB Navi cable
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
