Video Interface for Mercedes-Benz ML, R, GL, C, B-Class / W164 (US Version)
id: 811845
Video Interface for Mercedes-Benz ML, R, GL, C, B-Class / W164 (US Version)
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
0.85 kg Warranty: 12 months
Car video interface for Mercedes-Benz of W164 (ML-Class), W251 (R-Class), X164 (GL-Class), W203 (C-Class) body type and B-Class models, manufactured for USA market. Read more
Description
Car video interface for Mercedes-Benz of W164, W251, X164, W203 body type and B-Class models, manufactured for USA market. It allows you to connect external video sources, such as DVD player, additional navigation box, TV-receiver, reverse camera, to OEM car monitor.
Car Video Interface for Mercedes-Benz W164
Technical Specifications
- Inputs: (multi video interface)
- CVBS (for external video sources) × 2
- CVBS input for rear view camera
- Analog RGB input (for OEM monitor) x 1
- Analog RGB input (for additional navigation system) x 1 (optional)
- Output
- CVBS output (video output for headrest monitor) x 1
- Audio select output x 1
- RGB output x 1
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 5 W
- Input mode switching
- Video input disable: possible to skip each input source by adjusting DIP switches
- Input mode switching by remote controller or remote mode switch button
- Rear view camera mode: image form rear view camera is displayed only when the vehicle is reversing (it impossible to switch to the rear mode with remote switch button or remote controller)
- Dimensions: 131 mm × 75 mm × 21 mm
Car Video Interface for Mercedes-Benz W164
Compatibility
| Class | Body type | Model years | |
|---|---|---|---|
| From | To | ||
| ML | W164 | 2006 | 2008 |
| R | W251 | 2006 | 2008 |
| GL | X164 | 2007 | 2008 |
| C | W203 | 2005 | 2007 |
| B | 2003 | 2008 | |
Car Video Interface for Mercedes-Benz W164
Manuals
- Download installation guide for Mercedes-Benz video interface
- Download user manual for Mercedes-Benz W164 video interface (rev.3)
- Download user manual for Mercedes-Benz W164 video interface (rev.3.1)
- Download sub-board installation guide
Car Video Interface for Mercedes-Benz W164
Package Content
- Car video interface main board.
- Remote control unit with IR cable or OSD keypad
- Cable set:
- RGB (Out) cable

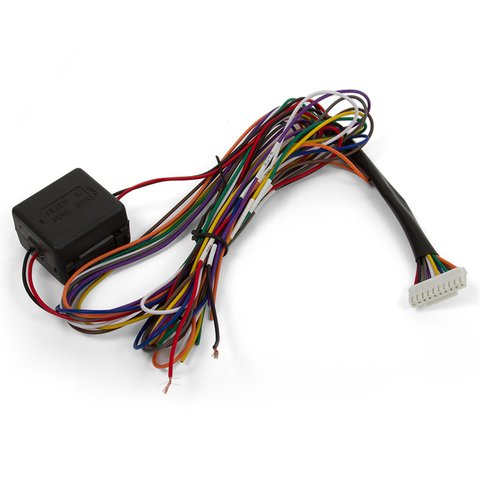

- Power cable with protective filter
- Cable with remote mode switch button
- Audio select cable

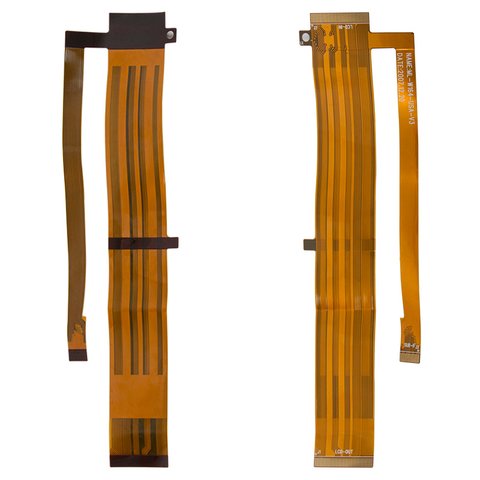

- RGB OEM cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
