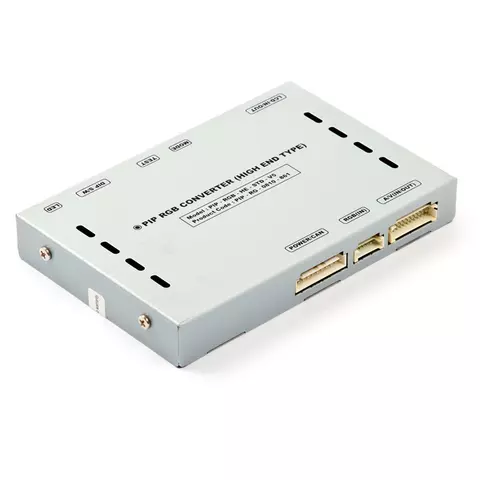

Video Interface for Mercedes-Benz W211 with Parking Guidelines
Car video interface is designed for Mercedes-Benz E-Class (W211), however, it also fits other Mercedes-Benz models. The device allows to connect navigation, rear view camera, DVD/HD player, TV receiver and other video resources to OEM monitor.
The video interface offers the function of parking guidelines (not dynamic), and also PIP (picture in picture) function (only in navigation mode).
Note! Video interface is not compatible with monitors, equipped with Sharp LCD screen
Frequently bought together
Car video interface is designed for Mercedes-Benz E-Class (W211), however, it also fits other Mercedes-Benz models. The device allows to connect navigation, rear view camera, DVD/HD player, TV receiver and other video resources to OEM monitor.
The video interface offers the function of parking guidelines (not dynamic), and also PIP (picture in picture) function (only in navigation mode).
Note! Video interface is not compatible with monitors, equipped with Sharp LCD screen
The most frequently asked questions about video interfaces.
Technical Specifications
- Inputs:
- AV (for external video sources) x 3
- CVBS (for rear view camera) x 1
- Analog RGB
- Outputs:
- CVBS output (for headrest monitors) x 1
- Audio x 1
- Output for connection to the monitor
- Power:
- Input power: 8 V ~ 24 V DC
- Max. consumed power: 5 W
- Input modes switch:
- remote control
- OEM button
- remote modes switch button
- Video input mute function: possible to mute each input with DIP switches
- Automatic display of rear view camera image when reversing (it's impossible to switch to rear view camera mode by remote button or remote control)
- Main board dimensions: 150 mm x 95 mm x 21 mm
Compatibility
| Class | Body type | Model years | |
|---|---|---|---|
| From | To | ||
| E | W211 | 2003 | 2008 |
| CLS | W219 | 2006 | 2008 |
| SLK | R171 | 2005 | 2008 |
| ML | W164 EURO Ver. | 2006 | 2008 |
| CLK | W209 | 2005 | 2008 |
| GL | X164 EURO Ver. | 2007 | 2008 |
| C | W203 | 2005 | 2008 |
| B | 2003 | 2008 | |
Note! Video interface is not compatible with the monitors, equipped with Sharp LCD screen
Manuals
- Download manual for Mercedes-Benz W211 video interface
- Download installation manual for Mercedes-Benz W211 video interface
Package Contents
- Main module
- Remote control
- Remote modes switch button
- Sub-board
- Cables set:
- RGB
- Power cable
- Cable with IR port for remote control
- AV cable
- FFC
- LVDS cable
