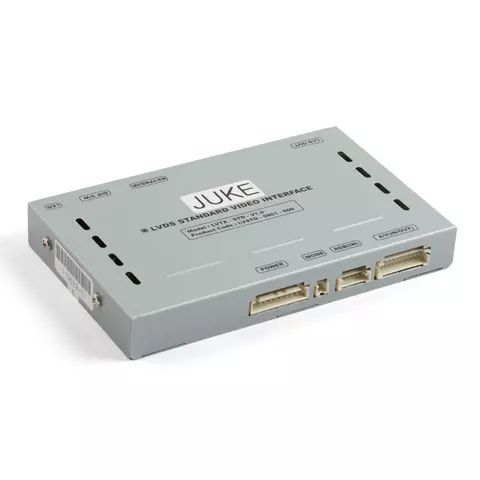

Video Interface for Nissan Juke

This car video interface allows you to connect external video sources such as navigation box, rear view camera, DVD player, TV receiver, to OEM monitor of your Nissan Juke. Also fits for other Nissan models, equipped with Nissan Connect monitor.

The most frequently asked questions about video interfaces.

Nissan Connect Monitor

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Technical Specifications

• Inputs
  • A/V input for external video sources ×3
  • CVBS for rear view camera
  • Analogue RGB for navigation system
  • LCD input
• Outputs
  • LCD output
  • Audio
• Power
  • Input power: 10 V DC ~ 16 V DC
  • Consumption power: 6 W, Max
• Input mode switch
  • Original buttons
  • By remote mode switch button
  • Possible to mute each input with DIP switches
• Video interface dimensions: 155 mm × 93 mm × 20 mm

Manuals

• Download user manual for Nissan Juke video interface
• Download installation guide for Nissan Juke video interface

Package Content

• Car video interface main board
• Sub-board (2)
• Remote control unit with IR cable or OSD keyboard
• Cables set
  • Power cable
  • A/V cable
  • Touch cable
  • Cable with remote mode switch button
  • RGB cable
  • Ground cable
  • LVDS cable
  • FPC cable (3)
