Video Interface for Porsche 911 / 977

Car video interface allows you to connect and use external video sources, such as DVD player, TV tuner, DVB-T receiver, rear view camera, etc. with OEM car monitor. This video interface is designed for Porsche 911 / 977.

The most frequently asked questions about video interfaces.

Video Interface for Porsche 911 / 977
Technical Specifications

Inputs

• CVBS input (for external video sources) x 2
• CVBS input (for rear view camera) x 1
• Analog RGB input (for OEM navigation source) x 1
• Analog RGB input (for external navigation source) x 1

Outputs

• CVBS output (for headrest monitor) x 1
• Select output x 1
• RGB output (to LCD ) x 1

Power

• Input power: 8 V DC ~ 18 V DC
• Consumption power: 5 W, Max

Input mode switch

• by remote controller or remote button;
• input video mute function: possible to make each input mute by operating Dip S/W;
• rear view camera mode: rear camera mode is switching on when the car is reversing (it's impossible to switch rear view camera mode with the S/W toggle or the remote control) .

Dimensions: 129 mm x 75 mm x 21 mm

Video Interface for Porsche 911 / 977
Manuals

• Download user manual for Porsche 911 / 977 video interface

Video Interface for Porsche 911 / 977
Package Content

• Video interface for Porsche main board
• Sub-board

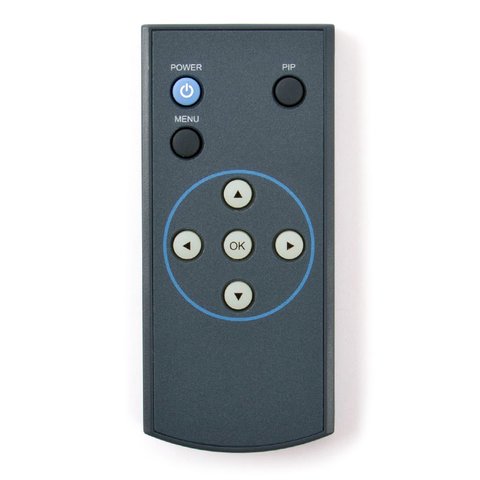

• Remote control unit with IR cable or OSD keypad
• Cable set
  • Power cable
  • Mode switch cable
  • Ground cable
  • Select cable
  • RGB Navi cable
  • OEM button cable
