Video Interface for Porsche Carrera, Cayenne of 2009– MY with PCM 3.0 Head Unit

Car video interface designed for Porsche Cayenne / Carrera of 2009∼ model year equipped with PCM 3.0 head unit. Video interface allows connecting external video devices such as DVD player, TV tuner, rear view camera to built-in car monitor. Application of this video interface adapter also allows usage of original Navi button with connected external video sources.

The most frequently asked questions about video interfaces.

Car Video Interface for Porsche Cayenne
Tecnical Specifications

• Input: multi video interface
  • A/V input (external video source) x 3
  • CVBS input (rear view camera) x 1
  • LCD input (car system input) x 1
  • Analog RGB input (navigation system output) x 1
  • Cayenne input x 1
• Output
  • Cayenne output x 1
  • Audio select (12 V power comes out from the 4 bundles of cables for video sources) x 4
• Power
  • Input power: 8 V DC ~ 24 V DC
  • Max. consumed power: 12 W
• Switch input mode
  • Input video MUTE function: possible to make each input mute by operating Dip S/W
  • Possible to switch input mode with keypad or remote control
  • Possible to switch input mode with the source toggle
• Board dimensions: 155 mm × 93 mm × 20 mm

Car Video Interface for Porsche Cayenne
Compatibility

• Porsche Cayenne 2009∼ with PCM 3.0 head unit
• Porsche Carrera 2009∼ with PCM 3.0 head unit

Car Video Interface for Porsche Cayenne
Manuals

• Download user manual for Porsche Cayenne 09 car video interface
• Download installation manual for Porsche Cayenne 09 car video interface

Car Video Interface for Porsche Cayenne
Package Content

• Car video interface main board
• Remote control unit with IR cable or OSD keypad
• Sub-board
• Cable set:

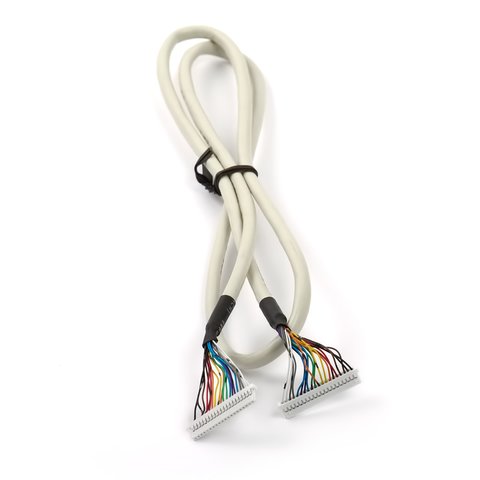

  • FPC T-cable

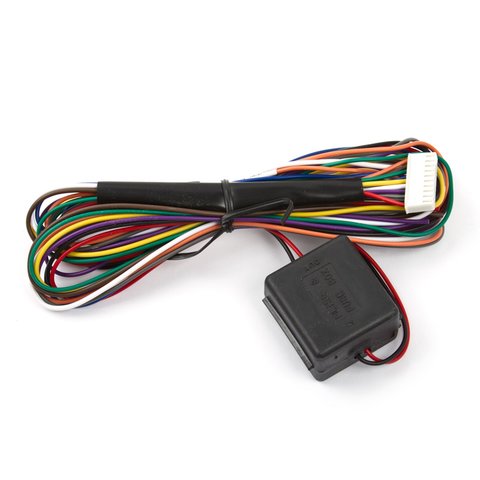

  • Power cable
  • Mode button + cable
  • Audio/video cable bundle
  • RGB (Out) cable
  • LCD (In) cable
