Video Interface for Porsche Cayenne, Panamera 2010 with PCM 3.1 Head Unit
You may also like
This car video interface is especially designed for Porsche models of 2010 and following model years with PCM 3.1 head unit. It allows you to connect and use external video sources such as DVD player, TV tuner, video game console, rear view camera on your built-in car monitor.
The most frequently asked questions about video interfaces.
Car Video Interface for Porsche PCM 3.1
Specifications and Features
Input: multi video interface
- Analog RGB input (for navigation system) × 1
- CVBS (for rear view camera) × 1
- Video input (for external video source) × 3
- LCD input (car system input) × 1
- Cayenne input × 1
Output
- Cayenne output × 1
- Audio select output × 4
Power
- Input power: 8 V DC – 18 V DC
- Max power consumption: 12 W
Switch Input Mode
- By a toggle button
- By remote button
- By original button (NAV)
- Input video mute function: possible to make each input mute by operating Dip S/W
Board dimensions
- 150 mm × 95 mm × 21 mm
Car Video Interface for Porsche PCM 3.1
Compatible Vehicles
- Porsche Cayenne 2010 ∼
- Porsche Panamera 2010 ∼
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Car Video Interface for Porsche PCM 3.1
Manuals
- Download user manual for Porsche PCM 3.1 video interface
- Download user manual for Porsche PCM 3.1 video interface (ver. 2)
Car Video Interface for Porsche PCM 3.1
Package Content

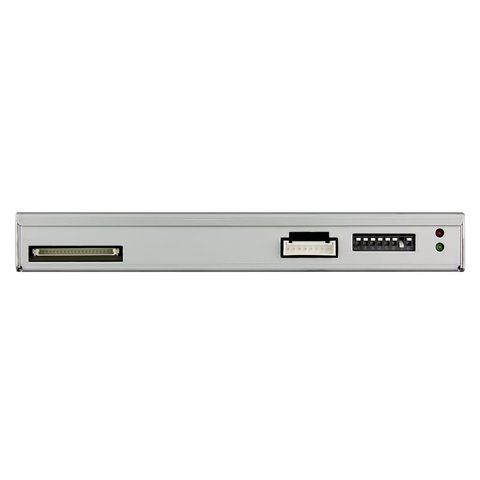

- Car video interface main module
- Cables kit
- Power cable

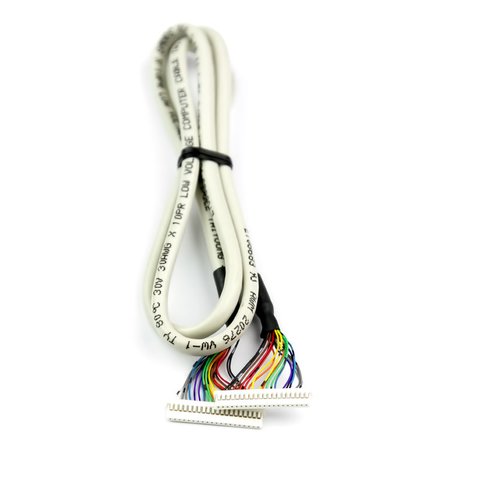

- LCD cable
- Cable with mode switch button
- RGB cable
- Ground cable
- FPC cable
- Board for connection to the head unit
- Remote control unit with IR cable or OSD keypad
This car video interface is especially designed for Porsche models of 2010 and following model years with PCM 3.1 head unit. It allows you to connect and use external video sources such as DVD player, TV tuner, video game console, rear view camera on your built-in car monitor.
The most frequently asked questions about video interfaces.
Car Video Interface for Porsche PCM 3.1
Specifications and Features
Input: multi video interface
- Analog RGB input (for navigation system) × 1
- CVBS (for rear view camera) × 1
- Video input (for external video source) × 3
- LCD input (car system input) × 1
- Cayenne input × 1
Output
- Cayenne output × 1
- Audio select output × 4
Power
- Input power: 8 V DC – 18 V DC
- Max power consumption: 12 W
Switch Input Mode
- By a toggle button
- By remote button
- By original button (NAV)
- Input video mute function: possible to make each input mute by operating Dip S/W
Board dimensions
- 150 mm × 95 mm × 21 mm
Car Video Interface for Porsche PCM 3.1
Compatible Vehicles
- Porsche Cayenne 2010 ∼
- Porsche Panamera 2010 ∼
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Car Video Interface for Porsche PCM 3.1
Manuals
- Download user manual for Porsche PCM 3.1 video interface
- Download user manual for Porsche PCM 3.1 video interface (ver. 2)
Car Video Interface for Porsche PCM 3.1
Package Content
- Car video interface main module
- Cables kit
- Power cable
- LCD cable
- Cable with mode switch button
- RGB cable
- Ground cable
- FPC cable
- Board for connection to the head unit
- Remote control unit with IR cable or OSD keypad
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
