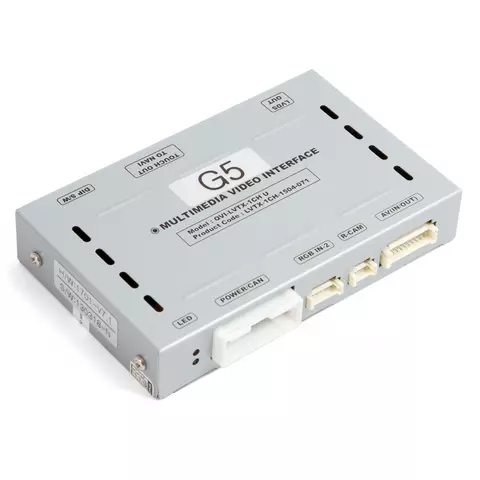

Car video interface allows you to connect additional video devices, such as navigation boxes or rear view cameras to the OEM car monitor. This adapter fits Volkswagen Golf and Seat Leon cars.
Please, take into account, that there are various types of Composition Color monitors. Type of card reader protection on the front internal part of the monitor (marked red on the picture) is the main compatibility criterion. If there is a plastic protection, the monitor is compatible.
The most frequently asked questions about video interfaces.
Video Interface for Volkswagen/Seat
Main Features
- Static parking guidelines function (PAS)
- Support of PDC function (in connection with OEM parktronic system)
- Automatic display of the image from the rear view or front view camera (depends on the gear)
- Switch between connected devices using OEM buttons
Video Interface for Volkswagen/Seat
Technical Specifications
- Inputs
- RGB input for navigation × 1
- AV × 2
- CVBS × 1 (for rear view camera)
- LCD × 1
- Outputs
- LCD output
- CVBS × 2
- Audio output
- Mode switching
- possible to switch between AV sources with DIP S/W
- with remote control or mode switch button
- Power
- Output voltage: 8 V DC ~ 16 V DC
- Maximum consumed power: 4 W
Video Interface for Volkswagen/Seat
Compatibility
| Brand |
Model |
Model years |
Head unit |
| From |
To |
| Volkswagen |
Golf |
2014 |
– |
Composition Colour |
| Seat |
Leon |
2013 |
2015 |
Easy Connect |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Video Interface for Volkswagen/Seat
Manuals
Video Interface for Volkswagen/Seat
Package Content
- Video interface
- Sub-board
- G5 sub-board
- Remote control
- Cable set:
- Power cable
- LVDS cable
- RGB cable
- AV cable
- LCD cable
- TOUCH cable
- R-CAM cable
- TOUCH OUT cable
- IR cable
- Cable with mode switch button
- FPC cable – 4 pc.
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
