Car video interface allows you to connect and use external video sources such as rear view camera, DVD player, TV tuner, etc. with your built-in car monitor. This car video interface is compatible with Volkswagen models equipped with the RNS 810 / RCD 810 radio navigation system.
Technical Specifications
- Inputs
- A/V input (for external video sources) × 3
- Analogue RGB (for navigation system)
- CVBS input (for external rear view camera source)
- LCD input
- Outputs
- LCD output (LCD operation)
- Selection cable × 4
- Power
- Input power: 10 V DC ~ 16 V DC
- Consumption power: 6 W, Max
- Input mode switch
- By remote mode switch buttons
- By original buttons
- Possible to mute each input with DIP
switches
- Video interface dimensions: 155 mm × 95 mm × 21 mm
Compatibility
| Model |
Head unit |
| Phaeton |
RNS810 |
| Touareg |
RCD810 |
| RNS810 |
RNS 810 / RCD 810 System
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
Package Content
- Car video interface main board.
- Sub-board
- Remote control unit with IR cable or OSD keypad

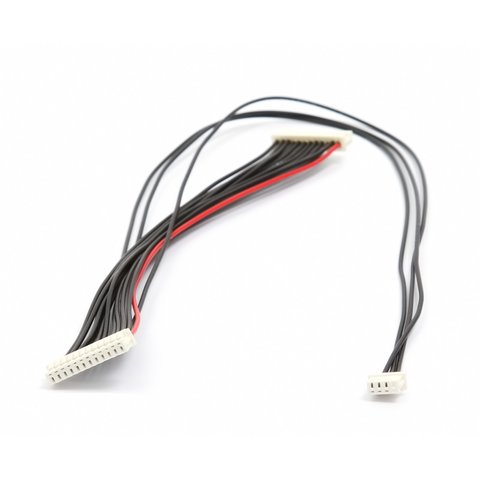

- Cables set
- Power cable with protective filter
- A/V cable
- Cable with remote mode switch button
- RGB cable
- Ground cable
- LVDS cable
- FPC cable
- Touch cable
- FFC cables (2)
- Extension cables (2)
- Button cable
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
