Overview
0.82 kg Warranty: 12 months
Car video interface has been developed especially for Volkswagen vehicles with RCD 510 head unit in order to help drivers to use video sources such as car rear view camera, DVD player, DMB or any other video devices on built-in car monitor. Read more
Description
Car video interface for Volkswagen equipped with RCD 510 head unit (year of manufacture 2009 ∼) allows connecting and using external video sources such as rear view camera, DVD player, TV tuner, etc. with your built-in car monitor.
The most frequently asked questions about video interfaces.

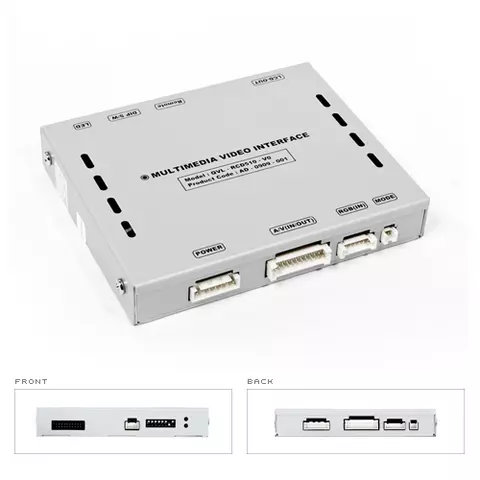

Car Video Interface for Volkswagen RCD 510
Features
- Automatic detection for NTSC, PAL signals
- Video source switch with a remote control or remote button
- Display images from external NAVI and video sources
- Connected video source control with original touch screen (supported only for some DVD players)
Car Video Interface for Volkswagen RCD 510
Technical Specifications
- Inputs: multi video interface
- A/V input (external video source) × 3
- CVBS input (rear camera) × 1
- Analog RGB input (navigation system output) × 1
- LCD input (car system input) × 1
- Outputs:
- LCD output × 1
- Audio select × 4
- Power
- Input power: 8 V DC ~ 24 V DC
- Consumption power: 12 W, Max
- Switch input mode
- Video input mute function: possible to mute each input with DIP switches
- Possible to switch video sources with a remote control
- Possible to switch video sources with a remote button
- Video interface dimensions: 125 mm × 105 mm × 22 mm
Volkswagen RCD 510 monitor
Car Video Interface for Volkswagen RCD 510
Manuals
- Download user manual for Volkswagen RCD 510 video interface
- Download user manual for Volkswagen RCD 510 video interface v.2
Car Video Interface for Volkswagen RCD 510
Package Content
- Car video interface main board.
- Sub-board
- Remote control unit with IR cable or OSD keypad
- Cables set
- Power cable with protective filter
- A/V cable
- LCD cable
- Toggle switch with cable
- RGB cable
- Flat cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
