Video Interface for Volvo S60, S80, V40, XC60 of 2010-2014 MY
id: 837513
Overview
1.15 kg Warranty: 12 months
Car video interface for Volvo XC60, S60, S80, V40 equipped with 5 inch display. Read more
Note! This item is shipped within 15 working days.
Description
Car video interface serves to connect external video sources, such as navigation box, rear view camera, DVD/HD player, TV tuner, Android TV boxes etc. to OEM car monitor. This device is designed for Volvo equipped with 5″ display.
The most frequently asked questions about video interfaces.
Car Video Interface for Volvo
Technical Specifications
- Inputs
- Analog RGB input
- CVBS input for rear view camera
- A/V input (NTSC & PAL) x 3
- Input for LCD
- Outputs
- CVBS outputs (for headrest monitors) x 2
- Audio output
- Output for OEM LCD connection
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3 W
- Mode switching
- by remote control
- by remote switch button
- on touch screen
- by original buttons
- Possible to skip AV source by DIP S/W.
- Board dimensions: 125 mm × 105 mm × 21 mm
Car Video Interface for Volvo
Compatibility
Model | Model years | Display | |
---|---|---|---|
From | To | ||
S60 | 2010 | 2014 | stock 5″monitor |
S80 | |||
V40 | |||
XC60 |
Car Video Interface for Volvo
Manuals
- Download user manual for Volvo video interface
- Download installation guide for Volvo video interface
Car Video Interface for Volvo
Package Content

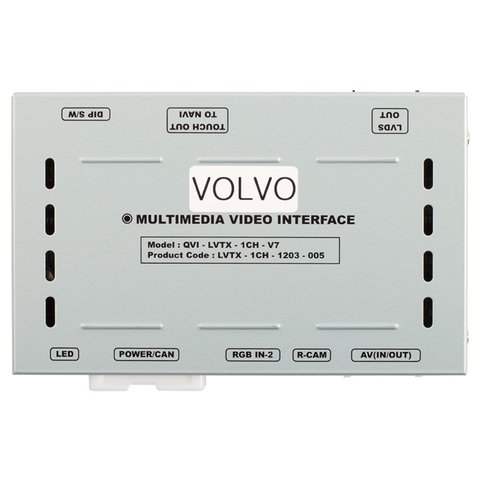

- Car video interface main module
- Sub-board
- Remote control unit with IR cable or OSD keypad
- Cable set:
- LVDS cable
- LCD cable
- RGB cable
- A/V cable

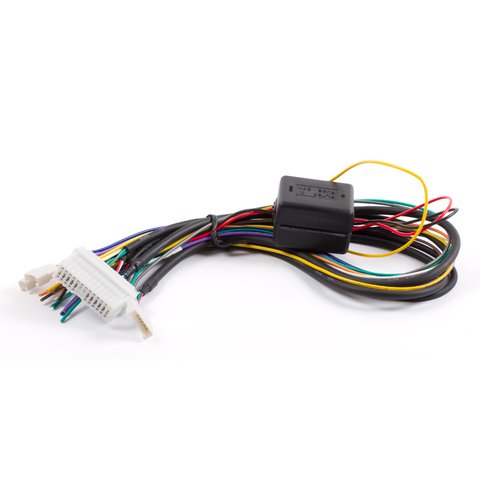

- Power cable (24 pin)
- Cable with mode switch button
- Touch out cable
- Rear camera power cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with Spare parts | |
Video Interface is compatible with |
|
Touch screen control of the connected devices |
|
Adaptive parking guidelines |
|
Modes switch by OEM buttons |
|
CAN bus support |
|
Navigation input |
|
DVD/HD/TV connection input |
|
Rear view camera input |
|
Built-in navigation |
|
