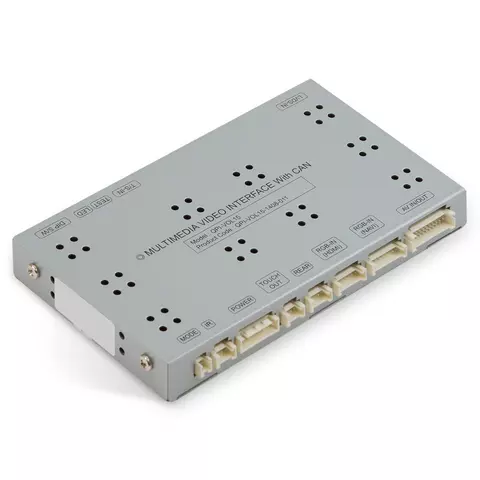

Car video interface for aftermarket video sources connection to the OEM monitor. These can be navigation box, rear view camera, DVD player/Android box, TV receiver. This adapter fits Volvo models of 2015 and following model years.
The most frequently asked questions about video interfaces.
Volvo Video Interface
Additional Functions
- Parking assistance system
- Active parking guidelines
- OEM PDC support
- Support of simultaneous display of images from different sources (PIP)
Volvo Video Interface
Technical Specifications
- Inputs
- RGB for aftermarket navigation
- CVBS for rear view camera
- A/V x 3
- Input for LCD
- Outputs
- Power
- Input voltage: 8 V DC ~ 18 V DC
- Max. consumed power: 5 W
- Inputs switch
- by NAV button
- remote button
- remote control
- Possibility to enable/disable input of the video interface by DIP switch
- Dimensions: 164 mm × 91 mm × 19 mm
Volvo Video Interface
Compatibility
| Model |
Model years |
Head unit |
| From |
To |
| S60 |
2015 |
– |
Sensus Connect |
| V40 |
| V60 |
| XC60 |
Note! Car has to be equipped with OEM navigation.
Volvo Video Interface
Manuals
Volvo Video Interface
Package Content
- Video interface main module
- Remote control with IR cable or OSD keypad
- Cables set:
- LVDS
- RGB
- A/V
- Power cable (7 pin)
- Remote inputs switch button
- Touch out
- Touch in
- Power cable for rear view camera
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
