Video Interface for Volvo XC60, S60, S80, V40, V60 of 2011-2014 MY

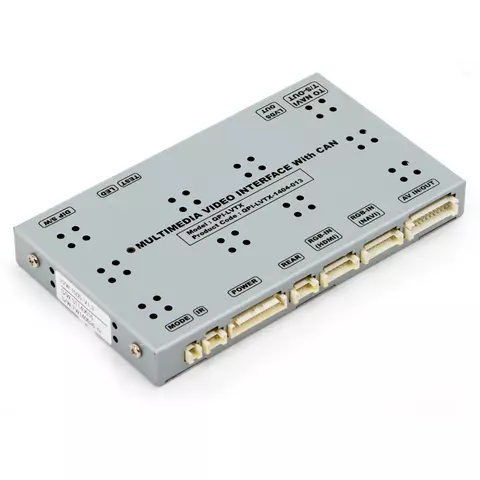

Car video interface serves to connect external video sources, such as navigation box, rear view camera, DVD/HD player, TV tuner, Android TV boxes etc. to OEM car monitor. This device is designed for Volvo equipped with 7″ display.

Differs from this video interface by support of active parking guidelines.

The most frequently asked questions about video interfaces.

Technical Specifications

• Inputs
• Analog RGB input
• CVBS input for rear view camera
• A/V input (NTSC & PAL) x 3
• Input for LCD
• Outputs
• CVBS outputs (for headrest monitors) x 2
• Audio output
• Output for OEM LCD connection
• Power
• Input power: 8 V DC ~ 18 V DC
• Max. consumed power: 3 W
• Mode switching
• by remote control
• by remote switch button
• on touch screen
• by original buttons
• Possible to skip AV source by DIP S/W.
• Board dimensions: 125 mm × 105 mm × 21 mm

Compatibility

Manuals

• Download user manual for Volvo video interface
• Download installation guide for Volvo video interface

Package Content

• Car video interface main module
• Sub-board
• Remote control unit with IR cable or OSD keypad
• Cable set:
  • LVDS cable
  • LCD cable
  • RGB cable
  • A/V cable
  • Power cable (24 pin)
  • Cable with mode switch button
  • Touch out cable
  • Rear camera power cable
