Video Interface with HDMI for BMW with CIC- HIGH(NBT) System
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
1 kg Warranty: 12 months
Video interface with HDMI for BMW 1, 3. 5, 7 of 2011 and following MY, equipped with CIC- HIGH(NBT) system. Supports active parking guidelines function (PAS). Read more
Discontinued
Description
Video interface with HDMI for BMW 1, 3. 5, 7 2011 and the following model years equipped with CIC- HIGH(NBT) system, allows you to connect additional video sources, such as, aftermarket navigation box, rear view camera, front view camera, HD player, TV receiver, smartphone mirroring adapter to the OEM monitor of your car.
This video adapter has HDMI input which allows you to connect aftermarket navigation and video sources via HDMI, which in its turn offers image of higher quality.
*Note! This video interface is an exclusive product, not to be sold to (in) the North America (Canada and the USA).
The most frequently asked questions about video interfaces.
Video Interface with HDMI for BMW
Additional Functions
- Controlling aftermarket navigation and connected video sources using the iDrive controller
- Active parking guidelines (PAS)
- Automatic display of the camera image (depends on the gear)
- PIP function support
Video Interface with HDMI for BMW
Technical Specifications
- Inputs:
- HDMI input × 2
- A/V input × 1
- Rear view camera input × 1
- Front view camera input × 1
- Outputs:
- LCD output × 1
- Power
- Output voltage: 8 V DC ~ 18 V DC
- Maximum consumed power: 5 W
- Mode switching
- Possibility to skip each input source by adjusting the DIP switch
- using the remote control / mode switch button
- Dimensions: 150 mm × 99 mm × 23 mm
Video Interface with HDMI for BMW
Compatibility
| Brand | Series | Body | Screen size | Model years | System | |
|---|---|---|---|---|---|---|
| From | To | |||||
| BMW | 1 series | F20 | 6,5″ | 2011 | 2015 | CIC- HIGH(NBT) (6pin LVDS connector) Entry EntryNAV (6pin LVDS connector) |
| 8,8″ | ||||||
| 10,2″ | ||||||
| 3 series | F30 / F31 | 6,5″ | ||||
| 8,8″ | ||||||
| 10,2″ | ||||||
| 5 series | F10 / F11 | 6,5″ | ||||
| 8,8″ | ||||||
| 10,2″ | ||||||
| 5 series GT | F07 | 6,5″ | ||||
| 8,8″ | ||||||
| 10,2″ | ||||||
| 6 series | F12 / F13 | 6,5″ | 2012 | |||
| 8,8″ | ||||||
| 10,2″ | ||||||
| 6 series GT | 6,5″ | |||||
| 8,8″ | ||||||
| 10,2″ | ||||||
| 7 series | F01 / F02 | 6,5″ | 2011 | |||
| 8,8″ | ||||||
| 10,2″ | ||||||
| X3 | F25 | 6,5″ | 2012 | |||
| 8,8″ | ||||||
| 10,2″ | ||||||
| Mini | Cooper | F56 | – | 2014 | – | |
Note! Video interface is not compatible with NBT EVO multimedia system!
Video Interface with HDMI for BMW
Manuals
- Download user manual for video interface with HDMI for BMW
- How to determine the type of your BMW system
Video Interface with HDMI for BMW
Package Content
- Video interface
- Cable set
- Power cable
- LVDS cable
- Rear view camera connection cable

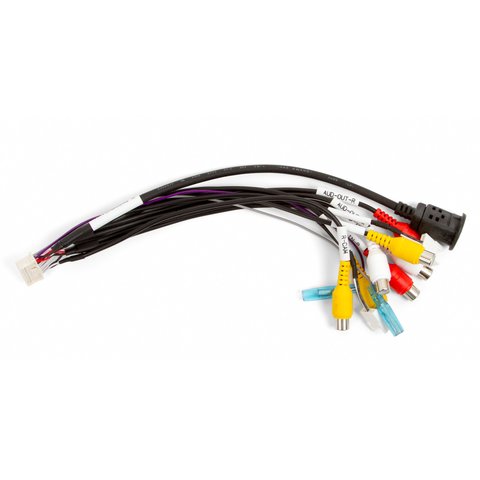

- Multi-cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
