Video Interface with HDMI for Chevrolet of 2015– MY, Opel of 2014– MY, and GMC 2016– MY

id: 863465
Video Interface with HDMI for Chevrolet of 2015– MY, Opel of 2014– MY, and GMC 2016– MY
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 230.00

Overview

1.3 kg Warranty: 12 months
Connect navigation, rear view camera and other additional video sources. Built-in parking assistance function (PAS). Supported head units: Chevrolet/GMC MyLink, Opel Intellilink. Read more
USD 230.00
USD 230.00
Impossible to estimate the shipping cost

Description

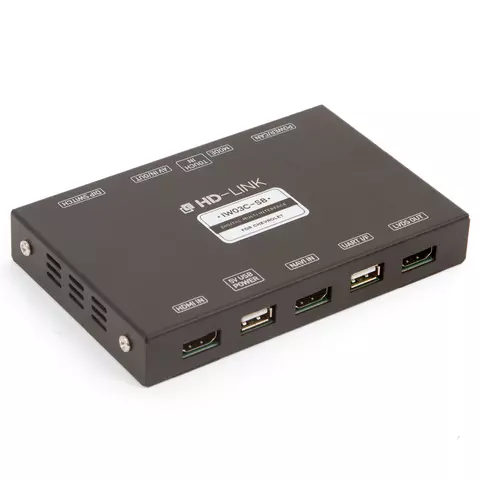

Car video interface allows connecting aftermarket navigation boxes, rear view cameras, front view cameras to the OEM monitor. It is designed for Chevrolet, Opel, and GMC cars. Video interface is compatible with OEM front view camera.

The video interface is equipped with parking guidelines function and provides a possibility to connect a Wi-Fi mirror adapter for mirroring cell phone / tablet displays on the OEM monitor of the car.

Note! Apple TV starting from tvOS 12 version is not supported.

The most frequently asked questions about video interfaces.

Wi-Fi Mirror adapter

Technical Specifications

  • Inputs
    • Input for connecting a rear view camera
    • Input for connecting a front view camera
    • A/V input x1
    • LVDS input for connecting a navigation system
    • HDMI input for connecting external video sources
  • Outputs
    • LVDS output
  • Mode switching
    • By original button through CAN (only when CAN wires are connected)
    • Possibility to skip each input source by adjusting DIP switch
    • Front view camera mode: image from the front camera is automatically displayed after a set time on the timer (5, 10, 15 seconds)
  • Dimensions
    • 142 mm x 91 mm x 22 mm
  • Output Resolution
    • 800×480

Compatibility

Brand Model Production years Head Unit
Chevrolet Suburban 2015 – MyLink
Corvette Stingray (C7) 2015 – MyLink with 8" monitor
Impala
Camaro 2016 – MyLink
Equinox 2018 – MyLink
Malibu 2016 – MyLink with 8" monitor
Volt
GMC Canyon 2016 – MyLink
Yukon MyLink
Opel Insignia 2014 – RF900Navi

PAS

Manuals

Package Content

  • Video interface
  • Sub-board
  • Cables set:
    • LVDS cable
    • A/V IN/OUT cable
    • Power cable
    • HDMI cable
    • Micro 5-pin cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Video Interface is compatible with the following models of Cars
  • Chevrolet Camaro
  • Chevrolet Malibu
  • Chevrolet Equinox
  • Chevrolet Corvette Stingray
  • Chevrolet Impala
  • Chevrolet Suburban
  • Chevrolet Volt
  • Opel Insignia
  • GMC Canyon
  • GMC Yukon
Touch screen control of the connected devices
  • No
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
