Video interface with HDMI for Lexus with Dynamic Parking Guidelines

id: 891584
Video interface with HDMI for Lexus with Dynamic Parking Guidelines
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 260.00
Add to cart
Overview
Rate product
0.95 kg
Availability in stock: HK
Warranty: 12 months
High-quality video interface that allows connecting external video devices and using the navigation on your OEM monitor. Has built-in dynamic parking guidelines. Read more
USD 260.00
Add to cart
Add to wishlist
USD 260.00
Add to cart
Impossible to estimate the shipping cost

Frequently bought together

Universal GPS box with HDMI output for connecting navigation in stock car monitors. OS Android 7.0, USB.
Availability in stock: HK
Shipping cost
ID: 890307 0.64 kg
Wireless CarPlay and Android Auto Adapter for connecting iOS and Android devices to the car multimedia system using Bluetooth. Allows to play video and audio on the connected monitor. Supports screens mirroring.
Availability in stock: HK
Shipping cost
ID: 899549 0.5 kg
Adapter for wired and wirelees connection of iOS and Android devices to the car multimedia system. Allows you to play video and audio on the connected monitor. Supports screens mirroring to display navigation, menu, applications, etc. on the connected monitor.
Availability in stock: HK
Shipping cost
ID: 905341 0.5 kg
Description

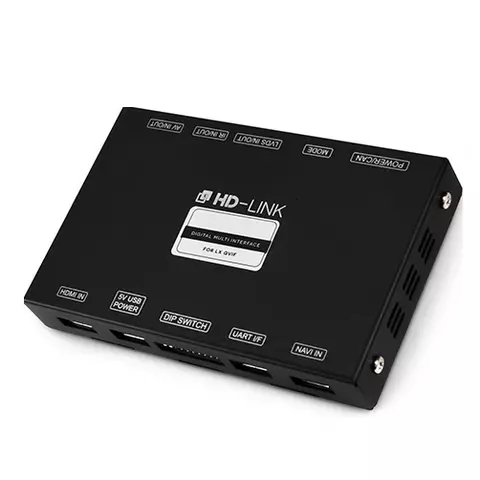

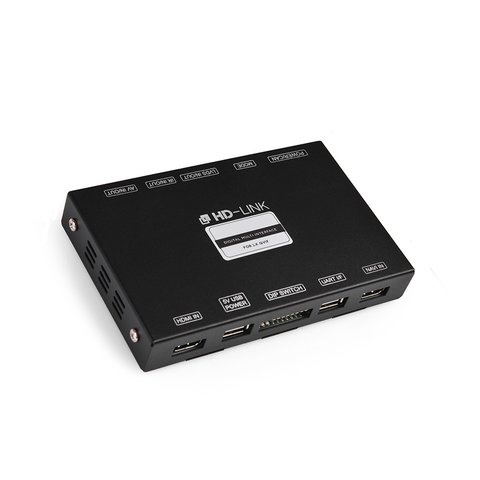

Video interface for Lexus ES/CT/IS/NX/RX cars allows connecting additional video devices, such as aftermarket navigation box, rear view camera, front view camera, smartphone mirroring adapter to your OEM car monitor.

This video adapter has HDMI input which allows you to connect aftermarket navigation and video sources via HDMI, which in its turn offers image of higher quality.

Note! Apple TV starting from tvOS 12 version is not supported.

Features

  • Dynamic parking guidelines
  • Automatic display of the image from the rear view or front view camera (depends on the gear)
  • Connection of external video devices
  • Compact size and easy installation

Technical specifications

Inputs AV x 1
LVDS x 1
HDMI x 1
USB (type A) x 1
Outputs AV x 1
LVDS x 1
Video resolution 800 x 480
Dimensions 142 x 91 x 22 mm

Compatibility

Model Production year Body Head unit
ES 300h 2014~ XV60 Lexus Display Audio controller
ES 350 2014~ XV60
CT 200h 2014~ A10
IS 250 2014~ XE30
NX 300h 2014~ AZ10
RX 450h 2015~ AZ20

Main menu

Lexus controller

Compatible monitors examples

Compatible monitors example

Compatible monitors examples: 1) Lexus ES300h (premium with 8" monitor) 2) Lexus ES 350 (premium with 8" monitor) 3) Lexus CT 200h (supreme with 7" monitor) 4) Example of the GVIF-cable connection.

Video interface functions (Lexus ES300h as an example)

Mode switching using OEM buttons

Mode switching using OEM buttons
Mode switching using OEM buttons

Dynamic parking guidelines

Dynamic parking guidelines
Dynamic parking guidelines

Dynamic parking guilines on rear view camera image

Front view camera image

Front view camera image

When you change the gear to ‘D’ from ‘P’ or ’R’ mode, the image from front view camera will be shown automatically on the screen. You can also set the timer for the image switch (8, 10, 15 seconds).

Settings interface

Settings interface

Here you can change mode settings (Mode Selection), image display settings (Image display), position and size of the screen (Screen position & size), and select the navigation mode (Navigation model selection). Interface can be opened using OEM buttons.

Wireless smartphone screen mirroring with Apcast adapter

Wireless smartphone screen mirroring with Apcast adapter

You can connect a mirroring adapter, and use screen mirroring to your OEM monitor via Wi-Fi

User manual

Download user manual for Lexus video interface

Package content

  • Video inteface for Lexus

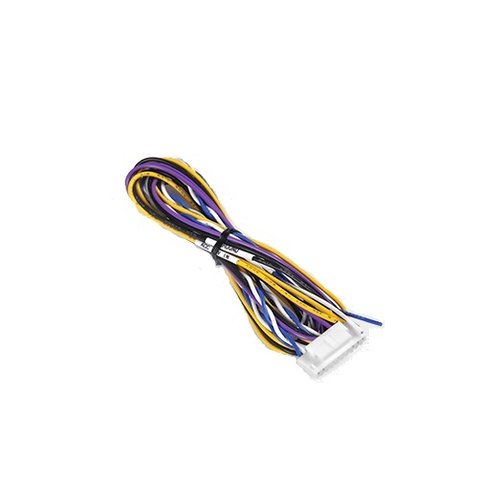

  • Power cable/CAN
  • GVIF cable
  • 5pin Micro USB cable
  • Remote switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Lexus RX
  • Lexus ES
  • Lexus CT
  • Lexus IS
  • Lexus NX
Touch screen control of the connected devices
  • No
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
