Car video interface is used to connect additional video devices, for example, navigation boxes, front view cameras or rear view cameras, smartphone mirroring adapter to the OEM monitor. This device is compatible with Toyota Camry of 2018 and the following model years, equipped with Panasonic multimedia system with 8" monitor.
Video interface offers simple and convenient switching between connected sources using OEM buttons.
The most frequently asked questions about video interfaces.
Features
- Built-in parking assistance function (PAS)
- High image quality thanks to LVDS input
- Simple and convenient switching between connected sources using OEM buttons
- Automatic display of the image from the rear view or front view camera (depends on the gear)
- Compact size and easy installation
Technical Specifications
- Inputs
- Analog RGB (for navigation boxes) × 1
- LVDS (for navigation and additional video sources) × 1
- CVBS (for rear view camera) × 1
- CVBS (for front view camera) × 1
- Outputs
- Mode switching
- OEM button through CAN bus
- possible to switch between AV sources with DIP S/W
- General
- Input voltage 8-24 V DC
- Consumed power 12 W
- Dimensions: 159 × 83 × 22 mm
Compatibility
| Model |
Model years |
Head unit |
| From |
To |
| Camry |
2018 |
– |
Panasonic with 8" monitor |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
Package Contents

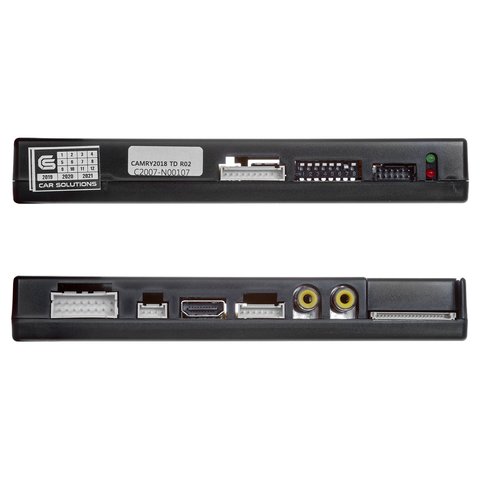

- Main video interface box

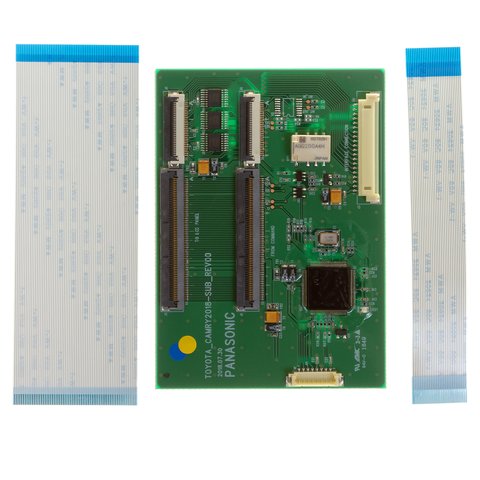

- Sub-board
- OSD keyboard
- Connection cables
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
