Cable for Navigation Box Connection to Panasonic Multimedia Systems (PA-RGB1)

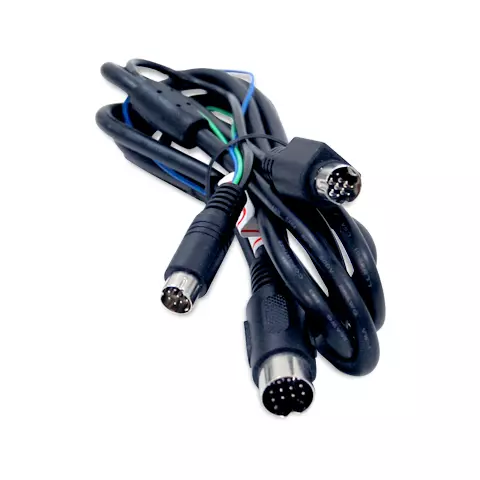

Additional cable PA-RGB1 (P89Y-13T4) for navigation box connection to Panasonic multimedia system with touch screen display. It allows you to transmit image (RGB) and sound (mono) from the navigation box to AV receiver and control navigation system via touch screen display.

Panasonic Cable for Navigation Box
Compatibility

Panasonic Multimedia Receivers

• CQ-VA7300N (w/o Touch - RF Remote Control)
• CQ-VD6503W ALL
• CQ-VD6505W ALL
• CQ-VD7001 ALL
• CQ-VD7003W ALL
• CQ-VD7005W ALL
• CQ-VW100W ALL
• CQ-VX100W ALL

Navigation Boxes

• CS9100
• CS9200
• CS9900
• CS9320
• WP9100R (RV)
• WP9100 Scale
• WP9200
• Element F1
• Element F10
• Element F15
• Phantom SPT-100
• Phantom SPT-200
• NAVIBOX (Outsourcing)

Panasonic Cable for Navigation Box
Installation Guide

You need to activate corresponding protocol before navigation box connection to Panasonic multimedia system. To do this, power navigation box and connect it to TV set or any other video signal receiver using composite video output. Then configure the box using the remote controller:
