CS9320 Navigation Box on Android for Multimedia Receivers (GPS and GLONASS)
Overview
Description
CS9320 navigation box is designed to be connected to aftermarket car multimedia receivers* and provides full functional navigation with touch screen control (for touch screen monitors). For monitors without touch screens, a remote controller with touchpad is used. Navigation box ensures Plug&Play installation.
The navigation box works under Android 4.1.1 platform allowing you to expand the device functionality by various programs and application from Google Play. The navigation box uses simultaneously GPS and GLONASS systems for more accurate positioning.
To connect CS9320 navigation box to your multimedia system you should purchase the necessary cable.
*Note! In case you need to connect navigation box to the OEM monitor, purchase CS9320 navigation box for OEM monitors. You will also need a car video interface for it.
Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.
CS9320 Navigation Box
Compatible Multimedia Receivers
CS9320 Navigation Box
Features
- GPS and GLONASS systems usage
- Built-in Wi-Fi adapter
- Input for rear view camera with image activation when reversing
- Input for camera (optional DVR mode)
- USB inputs
- Connection to Internet using 3G modem* or Wi-Fi
- Connection to the OEM antenna via adapter
*Note! 3G modem is not included in the package.
CS9320 Navigation Box
Technical Specifications
| System | Processor | A9 dual core 1200 MHz |
| OS | Android 4.1.1 | |
| RAM | 512 MB | |
| ROM | 4 GB | |
| Language | Multilanguage support | |
| GPS | Supported systems | GPS |
| GLONASS | ||
| GALILEO | ||
| Chipset | MediaTek MT3333 | |
| Channels | 99 | |
| Sensitivity | -165 dBm | |
| Cold start | 28 s | |
| Warm start | 26 s | |
| Hot start | < 1s | |
| Video outputs | RGB |
up to 800 × 480 |
| RCA | CVBS | |
| Video inputs | CVBS | for rear view camera |
| A/V | for camera | |
| Audio outputs | RCA | linear stereo |
| TS 3.5 mm | 0.25 W dynamics socket (mono) | |
| Audio inputs | TS 3.5 mm | for microphone |
| Data | USB | A type (for external devices 5 V / 1 A) |
| mini USB | A type | |

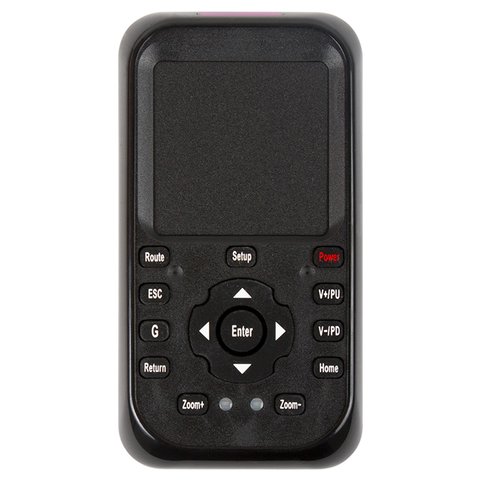

| Control | Radio remote control unit | with touch panel |
| Touch screen control | via cable for multimedia systems | |
| Car OEM control buttons | via touch screen adapter / directly | |
| Dimensions | Without connectors | 110 mm × 107 mm × 25 mm |
CS9320 Navigation Box
Manuals and Downloads
- Download installation guide for CS9320 navigation box
- Download navigation products from Google Play (free)
- Download navigation products from Google Play (paid)
CS9320 Navigation Box
Package Content
- CS9320 navigation box
- Remote control
- GPS antenna
- External speaker
- 4 GB memory card
- Connection cables set
*Note! Multimedia connection cables, navigation software and 3G modem are not included in the package.
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
