Car GPS Navigation Box Garmin GVN 53
Overview
Description
High sensitivity car GPS navigation box Garmin GVN 53 is designed to be integrated with car multimedia system to provide driver with turn-by-turn directions through the vehicle's stereo and view detailed maps on the car on-board monitor.

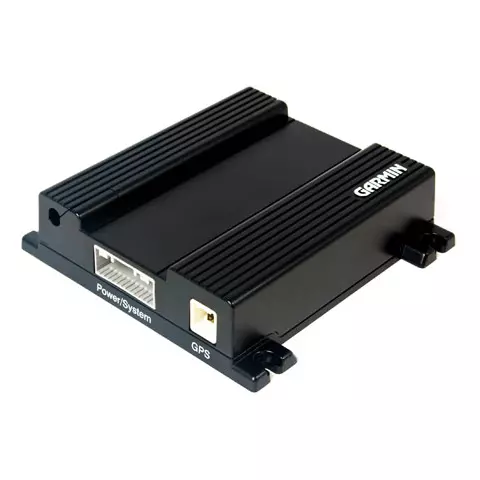

Garmin GVN 53 GPS Navigation Box
User Options
- Navigate with Your Entertainment System
- Add Traffic, Weather and Radio
- Operate with Ease
- Customize Your Video Settings
Garmin GVN 53 GPS box turns your car's audio/video system into a powerful
city navigator.
Look up and route directly to specific addresses or points of interest while
viewing your exact location on detailed street maps. It even announces the name
of exits and streets through your car's speakers so you never have to take your
eyes off the road. Map graphics are shown on your system's integrated video
display.
With an optional XM antenna and a subscription to XM services, the user can check
the weather, move ahead of traffic and listen to XM radio while travelling with
GPS navigation box Garmin GVN 53.
Navigation system GVN 53 can receive optional TMC traffic alerts (in
selected cities) when used with a compatible traffic receiver.
GPS navigation box GVN 53 installs out-of-sight and is easy to use. Hide the GPS receiver under a car seat using the included mounting hardware, and operate it easily with the included wireless remote control.
GVN 53 simultaneously outputs both NTSC composite video and RGB with the addition of a custom harness, so you can choose your video output. Its advanced video settings allow screen position to be adjusted for easy viewing from any angle.
Garmin GVN 53 GPS Navigation Box
Features
- Voice prompts
- Speaks street names
- Auto sort multiple destinations (provides most direct route)
- Auto re-route
- Choice of route setup (faster time / shorter distance / off road)
- Route avoidance (avoid highways / tolls etc.)
- FM traffic compatible
- XMBBB® compatible for U.S.
- Custom POIs (ability to add additional points of interest)
- Headphone jack/audio line-out
- Output simultaneous RGB and NTSC composite video (requires custom harness for RGB)
Garmin GVN 53 GPS Navigation Box
Technical Specifications
General
| Unit dimensions | Width × Height × Depth: 12 cm × 3.0 cm × 11.7 cm (4.7 in × 1.18 in × 4.6 in) |
| Weight | 185.9 g (6.5 ounces) |
| Operating temperature | 5°F to 158°F (0°C to 70°C) |
| Storage temperature | -40°F to 185°F (-40°C to 85°C |
| Operating voltage | 9.5V to 25V |
| Current consumption | 0.13 A typical at 13 V (max 1A at 13V) |
| ACC of current | 60 uA typical at 13 V |
| Connectors | System/power, GPS antenna, SD card slot, Mini-B for optional XM (only on the US version) or FM traffic receivers |
Navigation
| Receiver | SiRF STAR III high-sensitivity GPS receiver |
| Frequency | 1,575.42 MHz |
| Acquisition times* *On average for a stationary receiver with an open sky view |
Warm:< 1 second |
| Cold: < 38 seconds | |
| Autolocate®: < 1 second 45 seconds | |
| Update rate | 1/second, continuous |
| GPS accuracy | Position: < 10 meters, typical |
| Velocity: 0.05 meter/sec RMS | |
| Antenna | External GPS antenna, requires metal surface |
Maps and Memory
| Ability to add maps | yes |
| Built-in memory | internal solid state |
| Supported data cards | SD card (not included) |
| Waypoints/POI/locations | 2000 |
| Routes | 50 |
Garmin GVN 53 GPS Navigation Box
Manuals
- Garmin GVN 53 car GPS navigation box user manual
- Garmin GVN 53 car GPS navigation box installation manual
Garmin GVN 53 GPS Navigation Box
Package Content
- GPS box GVN 53
- GPS antenna
- RF remote control
- Wire harness
- Speaker talk box
- Installation hardware
- Installation guide
- User manual
