Navigation System for Mazda Based on CS9200RV
Overview
Description
The navigation system is designed for Mazda CX7 and CX9, equipped with the OEM colour (including touch screen) monitors and navigation. As a result, you receive fully functional navigation with the required interface language and maps, and touch screen control (for touch screen monitors).
Note! CS9200
navigation box installation in Mazda cars does not cause wiring damage (it is
performed without wire cutting off) and allows user to keep the car warranty
valid.
* Warning: As a result of OEM navigation system disabling in Mazda CX7 and Mazda CX9 time will not be shown in the menu.
Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.
Mazda Navigation System Based on CS9200
Additional Features
Navigation Box Functionality Expansion
- Internet connection
Connection to the Internet via 3G modem (included in the package). Wi-Fi connection with the help of USB adapter (included in the package). - USB devices connection. You can connect 4 USB devices with more than 500 mA current consumption without USB booster
OEM Antenna Connection
Specially developed adapter allows you to connect navigation box to OEM GPS antenna which provides high quality signal and easier installation.
Mazda Navigation System Based on CS9200
Compatible Head Units
 |
 |
| Mazda CX7 OEM Monitor | Mazda CX9 OEM Monitor |
Mazda Navigation System Based on CS9200
Technical Specifications
| System | Processor | ARM11 Samsung S3C6410 800 MHz |
| OS | WIN CE 6.0 | |
| Language / localisation | English / English (Russian) | |
| Memory | ROM | 128 MB |
| RAM | DDR 128 MB | |
| Memory cards | MMC, miniSD, SD, SDHC up to 32 GB (depends on the manufacturer) |
|
| Video inputs | 2 video inputs | |
| Video outputs | RGB supported resolutions: |
320×240, 400×234, 480×234, 480×272, 640×240, 640×480, 800×480 |
| RCA | NTSC 3,58 MHz | |
| Audio outputs | RCA | stereo |
| TS 3.5 mm | 0.25 W dynamics socket | |
| Data | USB (2) | A type (for external devices 5 V / 1 A) |
| Control | Radio remote controller | with touch panel |
| Touch screen panel | Via USB controller * | |
| Car OEM control buttons | touch screen adapter | |
| GPS | Chipset | MTK MT3329T |
| Channels | 66 | |
| Frequency | L1 1575,42 MHz | |
| Sensitivity | -165 dB | |
| Reacquisition | 1 s | |
| Protocol | GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV (1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s), (additionally GLL or MTK NMEA Command) |
|
| Hot/warm/cold start | 1 s / 28 s /30 s | |
| Antenna | SMA, active | |
| Power | 10-30 V DC | Can be connected to constant power supply. Sleep mode when ignition is switched off can be activated. |
Mazda Navigation System Based on CS9200
Manuals
Mazda Navigation System Based on CS9200
Package Content

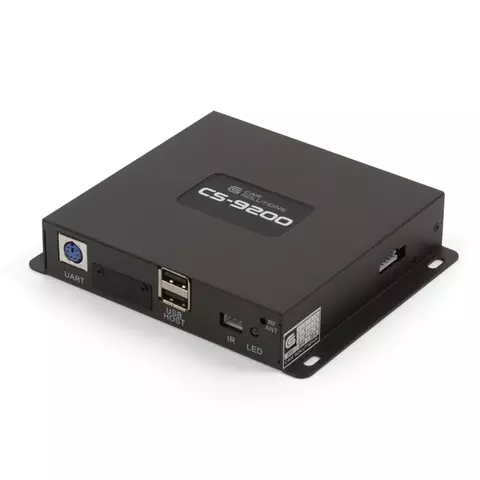

- CS9200RV navigation box
- Touch screen controller
- Remote control
- GPS antenna
- External speaker
- Memory card 8 GB
- Power cable
- Connection cable
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
