Q-ROI Navigation Box on Android for OEM Monitors (Refurbished)
Overview
Description
Q-ROI navigation box is designed to connect navigation to OEM monitors. You will need a video interface for installation. Navigation box works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and application from Google Play.
If your monitor doesn't have an OEM touch screen, you can purchase an additional touch screen panel.
*Note! This navigation box has been refurbished. You can see actual photos here

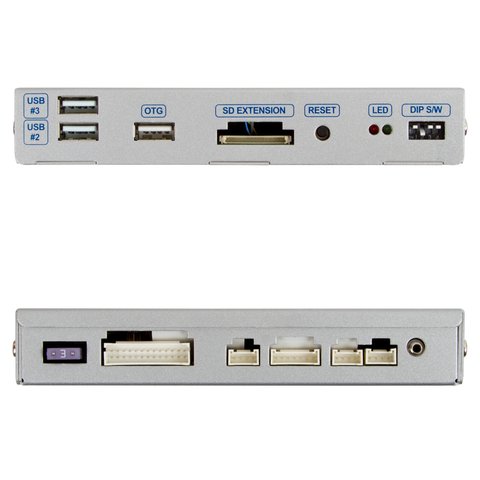

Q-ROI Navigation Box
Features
- Aftermarket navigation on your OEM monitor
- Play media content
- Connect to Internet via 3G modem* or Wi-Fi
- USB inputs
- Navigation output resolution
- 800×480
- 400×234
*Note! 3G modem is not included in the package.
** Note! 400×234 resolution is only possible through the following video interfaces:
- Video interface for Mercedes-Benz
- Video interface for Audi with MMI
- Video interface for Audi without MMI
- Video interface for BMW
- Video interface for BMW of 2011 MY
- Video interface for Audi, Volkswagen, Skoda, Seat
Q-ROI Navigation Box
Technical Specifications
| System | CPU | Telechips TCC8930 (1GHz Cortex A9 DualCore) |
| OS | Android 4.2.2 Jelly Bean | |
| RAM | DDR 3 1 GB | |
| ROM | 8 GB eMMC | |
| Language | Multilingual | |
| GPS | Supported systems | GPS |
| Chipset | SiRF | |
| Outputs | RGB |
800 × 480 |
| 400 ×234 | ||
| CVBS | 2 | |
| Inputs | AV | 2 |
| Data | USB | USB 2.0 × 4 |
| OTG USB ×1 | ||
| Slot for memory card | SD/SDHC (up to 64 GB) | |
| General | Power | 12 V |
| Dimensions | 147 mm × 92 mm × 26 mm |
Q-ROI Navigation Box
Manuals
- Download manual for Q-ROI navigation box
- Download manual for Q-ROI navigation box v.2
- Photos of the navigation box
Q-ROI Navigation Box
Package Content
- Q-ROI navigation box
- Connection cables
- Power cable
- Video cable
- Touch cables
- USB cable
- GPS antenna

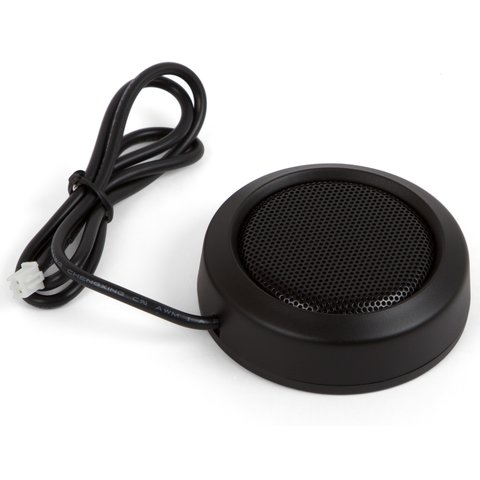

- External speaker
- External slot for SD card
- Microphone
- Wi-Fi adapter
Note! Navigation software, touch screen panels, video interface, controllers, 3G modem are not included in the package.
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
