Overview
1 kg Warranty: 12 months
This item is delivered upon order. The current price and delivery time require clarification.
Connect navigation, rear view camera and other additional video sources. Built-in parking assistance function (PAS). Supported head units: NBT EVO. Read more
Discontinued
Description

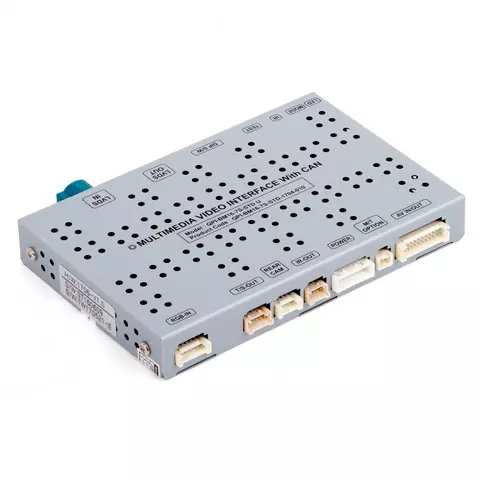

Car video interface is used to connect the aftermarket devices, for example, navigation box, rear view camera, DVD/HD player and Android TV box (OEM touch control is not supported), to the OEM monitor with touch screen control. Compatible with BMW cars of various series.
Note! Only Q-ROI navigation box and Q-ROI-2 navigation box support OEM touch control. If you would like to install a different navigation box – you will also need a touch screen.
The most frequently asked questions about video interfaces.
Additional Features
- Dynamic parking guidelines (PAS)
- Support of PDC
Technical Specifications
- Inputs
- RGB input for navigation system
- Input for a rear view camera
- A/V input × 3
- Outputs
- LCD ×1
- Power
- Input voltage: 8 V DC ~ 18 V DC
- Maximum consumed power: 5 W
- Input switch
- Video input mute function: possible to mute each input with DIP switches
- Switching video sources with a remote control / remote button
- OEM button
Compatibility
| Series | Body | Model year | Head unit | Monitor size | |
|---|---|---|---|---|---|
| From | To | ||||
| 1 | F52 | 2017 | – | NBT EVO ID5 / NBT EVO ID6 | 8.8″/ 10.2″ |
| 2 | F22/F23/F45/F46 | ||||
| 3 | F30/F31 | ||||
| 4 | F32/F33/F36 | ||||
| 5 | G30 | ||||
| 7 | G11/G12 | ||||
| X3 | G01/F25 | ||||
| X4 | F26 | ||||
| X5 | F15 | ||||
| Mini | F54/F55/F56/F60 | ||||
Note! OEM monitors with and without a touch screen are supported.
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
- Download user manual for video interface for BMW
- Download user manual (version №2) for video interface for BMW
Package Contents
- Video interface
- Remote control with IR cable
- Remote mode switch button
- Cable set:
- LCD cable
- RGB cable
- AV cable
- REAR cable
- IR cable
- Power cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
