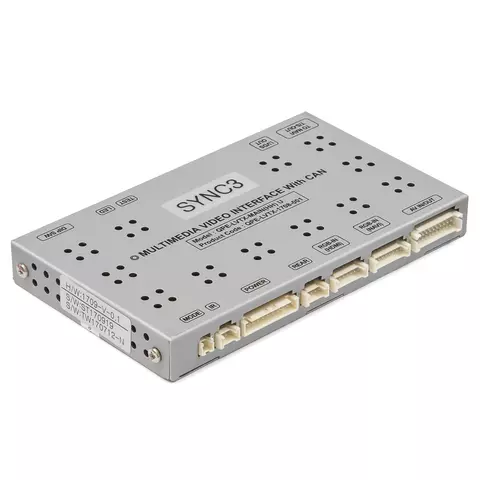

Car video interface for Ford cars with Sync 3 monitors. It allows you to connect external video sources, such as navigation boxes, rear view cameras, HD players, TV receivers, etc., to the OEM monitor of your car.
The video interface offers the function of active parking guidelines.
Compatible with the following navigation boxes:
The most frequently asked questions about video interfaces.
Video Interface for Ford
Technical Specifications
- Inputs
- Analog RGB input
- CVBS (for front view camera)
- A/V for external video sources × 3
- Outputs
- UART output for navigation box connection
- Power
- Input voltage: 8 V DC ~ 18 V DC
- Maximum consumed power: 5 W
- Modes switching
- with remote control or OEM buttons (Ford Focus and Kuga only)
- automatic display of the image from the connected reverse camera when reversing (if CAN wires or REAR wire is connected)
- possible to skip AV source by DIP S/W
- Dimensions: 140 mm × 90 mm × 18 mm
Video Interface for Ford
Compatibility
| Model |
Model year |
Monitor |
| From |
To |
| Explorer |
2016 |
– |
Sync 3 |
| F150 |
| Focus |
| Kuga |
| Mustang |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Video Interface for Ford
Manuals
Video Interface for Ford
Package Content
- Video interface main module
- Sub-board
- Remote control with IR cable
- Cable with remote modes switch button
- Connection cables
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
