Video Interface for Mercedes-Benz C, E, S Class NTG 4.0
id: 866925
Video Interface for Mercedes-Benz C, E, S Class NTG 4.0
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 250.00
Overview
1 kg Warranty: 12 months
Connect navigation, rear view camera and other additional video sources. Built-in parking assistance function (PAS). Read more
Description

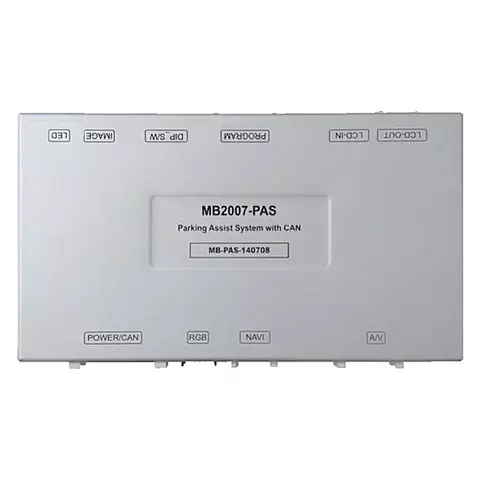

Using this car video interface you will be able to connect additional video sources, such as, navigation boxes, rear view cameras, to the OEM monitor. It is designed for Mercedes-Benz cars.
The video interface is equipped with the active parking guidelines (PAS) function.
The most frequently asked questions about video interfaces.
Technical Specifications
- Inputs
- RGB input for connecting navigation
- Input for connecting a rear view camera
- A/V input × 2
- GVIF input
- Outputs
- CVBS outputs× 2
- Audio output
- GVIF output
- Mode switching
- by original button through CAN (only when CAN wires are connected)
- Possibility to skip each input source by adjusting DIP switch
- Power
- Input voltage: 8 V DC ~ 24 V DC
- Maximum consumed power: 12 W
Compatibility
| Class | Body | Model year | System | Monitor size | |
|---|---|---|---|---|---|
| From | To | ||||
| C-Class | W204 | 2007 | 2012 | APS NTG 4.0 | 5" / 7" |
| E-Class | W212 | 5.8" / 7" | |||
| GLK | X204 | 7" | |||
| S-Class | W220 / W221 | 2007 | 2009 | 8" | |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
Package Contents
- Video interface
- Cable set:
- RGB NAVI cable
- LVDS IN cable
- LVDS OUT cable
- A/V cable
- Power cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
