Video Interface for Range Rover 2010- MY with Dual View LCD Screen
id: 821244
Video Interface for Range Rover 2010- MY with Dual View LCD Screen
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 250.00
Overview
0.81 kg Warranty: 12 months
This item is delivered upon order. The current price and delivery time require clarification.
Car video interface for Range Rover 2010- YM models with build-in dual view LCD display. Read more
Download manual
USD 250.00
Description
Car video interface for Range Rover 2010 has been designed especially for Range Rover models of 2010 and following model years with built-in dual view LCD display enabling viewers to see 2 totally different images depending on the viewing angle. Car video interface is used for aftermarket video sources connection to the OEM monitor. These can be navigation box, rear view camera, DVD player/Android box, TV receiver.
The most frequently asked questions about video interfaces.
Technical Specifications
Input: multi video interface
- Analog RGB input (for navigation system) × 1
- CVBS (for rear view camera) × 1
- Video input (for external video source) × 3
- LCD input (car system input) × 1
- GVIF input × 1
Output
- GVIF output × 1
- Audio select output × 4
Power
- Input power: 8 V DC – 18 V DC
- Max consumed power: 12 W
Switch Input Mode
- With the source toggle
- Through CAN
- By remote modes switch button
- Input video mute function: possible to make each input mute by operating Dip S/W
Board dimensions
- 125 mm × 103 mm × 21 mm
Compatibilty
| Brand | Model | Model years | |
|---|---|---|---|
| From | To | ||
| Land Rover | Range Rover Vogue | 2010 | 2013 |
| Range Rover Sport | |||
| Freelander | – | ||
Manuals

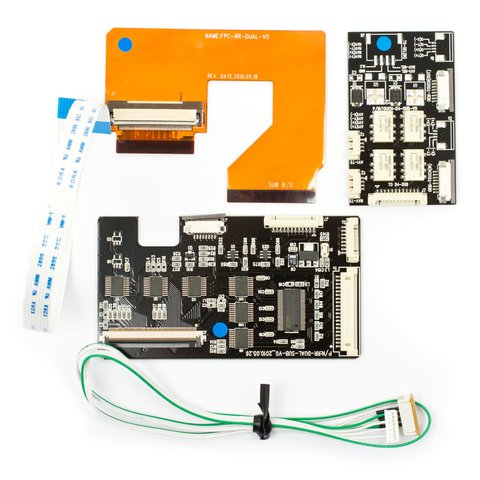

Package Content
- Car video interface main module
- Sub-board
- Touch board
- Cables kit:
- Power cable
- AV cable
- Ground cable
- SEL cable
- FFC
- By-Pass cable
- Touch cable
- FPC cable
- RGB IN cable
- LVDS cable
- Remote modes switch button
- Remote control unit with IR cable or OSD keypad
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
