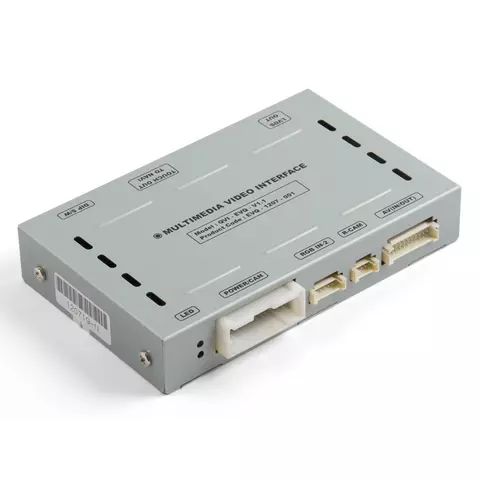

Video Interface for Range Rover Evoque of 2011-2013 MY

Car video interface is used for external video sources connection to the OEM monitor. These can be navigation box, rear view camera, DVD player or car TV receiver. This video interface is also equipped with additional RGB input for displaying image from the connected smartphone.
The most frequently asked questions about video interfaces.
Video Interface for Range Rover Evoque
Technical Specifications
- Inputs
- RGB input
- RGB input for smartphone connection adapter
- Input for rear view camera
- A/V input
- Input for LCD
- Outputs
- CVBS outputs (for connecting headrest monitors)
- Audio output
- Output for OEM monitor connection
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3 W
- Sources switching
- by touch screen
- by original button
- by remote control
- bye remote modes switch button
- Possible to skip AV source by adjusting DIP S/W.
Frequently bought together
Car video interface is used for external video sources connection to the OEM monitor. These can be navigation box, rear view camera, DVD player or car TV receiver. This video interface is also equipped with additional RGB input for displaying image from the connected smartphone.
The most frequently asked questions about video interfaces.
Video Interface for Range Rover Evoque
Technical Specifications
- Inputs
- RGB input
- RGB input for smartphone connection adapter
- Input for rear view camera
- A/V input
- Input for LCD
- Outputs
- CVBS outputs (for connecting headrest monitors)
- Audio output
- Output for OEM monitor connection
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 3 W
- Sources switching
- by touch screen
- by original button
- by remote control
- bye remote modes switch button
- Possible to skip AV source by adjusting DIP S/W.
Video Interface for Range Rover Evoque
Compatibility
- Land Rover Range Rover Evoque of 2011-2013 MY
Video Interface for Range Rover Evoque
Manuals
- Download manual for Range Rover Evoque video interface
- Download installation guide for Range Rover Evoque video interface
Note! FFC cable from the package should be correctly connected to the sub-board. Otherwise the monitor can be damaged.
Video Interface for Range Rover Evoque
Package Content
- Video interface module
- Sub-board (2)
- Remote control unit with IR cable or OSD keypad
- Mounting
- Cables set:
- LVDS cable
- RGB cable
- A/V cable
- Power cable (24 pin)
- Remote mode switch button
- Touch out cable
- Touch in
- Power cable for rear view camera
- FFC (2)
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
