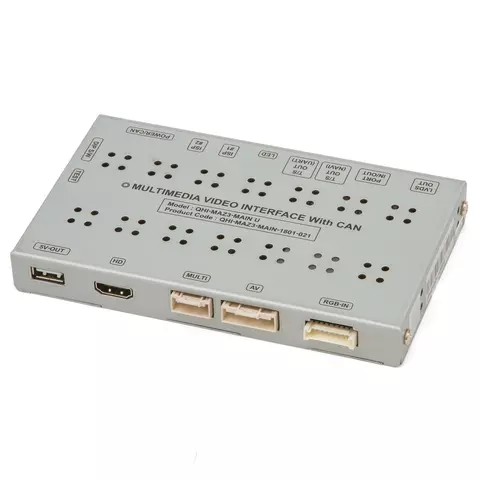

Video Interface with HDMI for Mazda of 2014– MY with MZD Connect System

id: 875016
Video Interface with HDMI for Mazda of 2014– MY with MZD Connect System
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 230.00
Add to cart
Overview
Rate product
1 kg
Availability in stock: HK
Warranty: 12 months
The device allows connection of additional video sources, such as, a rear view camera. Equipped with HDMI input and active parking guidelines function (PAS). Read more
USD 230.00
Add to cart
Add to wishlist
USD 230.00
Add to cart
Impossible to estimate the shipping cost

Frequently bought together

Universal GPS box for connecting navigation to OEM monitors. OS Android 10.0, 4 GB RAM, USB, ARM Cortex-A72 + Cortex-A53@2.0GHz.
Availability in stock: HK
Shipping cost
ID: 901227 1 kg
Wireless CarPlay and Android Auto Adapter for connecting iOS and Android devices to the car multimedia system using Bluetooth. Allows to play video and audio on the connected monitor. Supports screens mirroring.
Availability in stock: HK
Shipping cost
ID: 899549 0.5 kg
Adapter for connecting iOS and Android devices to the car multimedia system. Supports screen mirroring function to display navigation, menu, applications, etc. on the connected monitor.
Availability in stock: HK
Shipping cost
ID: 876221 0.4 kg
Universal Apple CarPlay Adapter
Add to wishlist
ID: 885506
Universal Apple CarPlay Adapter
USD 100.00
Add to wishlist
Add to cart
Universal adapter with CarPlay function, which allows connecting an iPhone and using its features on car monitor.
Availability in stock: HK
Shipping cost
ID: 885506 0.2 kg
Adapter for wired and wirelees connection of iOS and Android devices to the car multimedia system. Allows you to play video and audio on the connected monitor. Supports screens mirroring to display navigation, menu, applications, etc. on the connected monitor.
Availability in stock: HK
Shipping cost
ID: 905341 0.5 kg
Universal GPS box with HDMI output for connecting navigation in stock car monitors. OS Android 7.0, USB.
Availability in stock: HK
Shipping cost
ID: 890307 0.64 kg
Description

Car video interface allows you to connect additional video devices, such as navigation boxes, front view or rear view camera, smartphone mirroring adapter, to the OEM car monitor. This adapter fits various Mazda models.

This video adapter has HDMI input which allows you to connect aftermarket navigation and video sources via HDMI, which in its turn offers image of higher quality.

Compatible with the following navigation boxes:

The most frequently asked questions about video interfaces.

Main Features

  • Active parking guidelines function (PAS)
  • Control additional video sources using OEM touch screen
  • Switch between connected devices using OEM buttons

Technical Specifications

  • Inputs
    • RGB (for navigation) × 1
    • AV (for additional video sources) × 1
    • HDMI (for additional video sources) × 1
    • CVBS (for rear view camera) × 1
    • CVBS (for front view camera) × 1
  • Outputs
    • LCD output
  • Mode switching
    • OEM button through CAN bus (only if CAN wiring is connected)
    • possible to switch between AV sources with DIP S/W
    • with remote control or mode switch button
  • General
    • Output voltage: 8 V DC ~ 18 V DC
    • Maximum consumed power: 5 W

Compatibility

Model Model years System Additional compatibility
conditions
From To
Mazda 2 2014 MZD Connect without
OEM navigation system

MZD Connect with
OEM navigation system

BOSE or other
manufacturer audio system
7 " OEM monitor
Mazda 3 2014 2018
Mazda 3 Sedan 2014
Mazda 6 2015
Mazda CX-3 2014
Mazda CX-4 2016
Mazda CX-5 2015
Mazda CX-7 2017
Mazda CX-9 2015
Mazda MX-5 2014
Mazda Miata 2016


Mazda head unit

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Manuals

Package Content

  • Video interface main box
  • Sub-board
  • Remote control
  • Connection cables
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Mazda
Video Interface is compatible with Head Units
  • MZD Connect
Touch screen control of the connected devices
  • No
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
