Car Rear View Camera for Toyota Land Cruiser 100/200
id: 817301
Overview
0.2 kg Warranty: 12 months
Car rear view camera in waterproof case for Toyota Land Cruiser 100/200. Reverse camera is a good parking assistance device providing you wide field of view and colourful image. 170° viewing angle. Read more
Discontinued
Description
Car rear view camera in waterproof case has been designed especially for Toyota Land Cruiser 100/200.
Rear view camera is one of the best parking assistance devices providing you wide field of view and colourful image. This reverse camera is designed to be connected to any car monitor by yellow composite RCA jack.
If you would like to install an aftermarket camera we suggest buying an interface, which also allow you to connect additional video sources to your car monitor.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
Land Cruiser Rear View Camera
Features
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
- Automatic white balance
- Parking reference lines (option)
Land Cruiser Rear View Camera
Technical Specifications
Sensor | OV7950 |
Video system | NTSC |
Effective pixels | 656 × 492 |
Horizontal resolutions | 420 TVL |
Viewing angle | 170° |
Minimum illumination | 2.26V/Lux-sec at 5600 k |
Video output | 1.0Vp-p,75 Ohm |
Case | Waterproof (IP67 and IP68 classes) |
Operation voltage | 8 ∼ 12 V |
Operation temperature | from -20°C to +75°C |
Storage temperature | from -40°C to +80°C |
Dimensions (W×H×D) | 68.3 mm × 51 mm × 50.5 mm |
Power cable length | 1.5 m |
Video cable length | 5 m |
Land Cruiser Rear View Camera

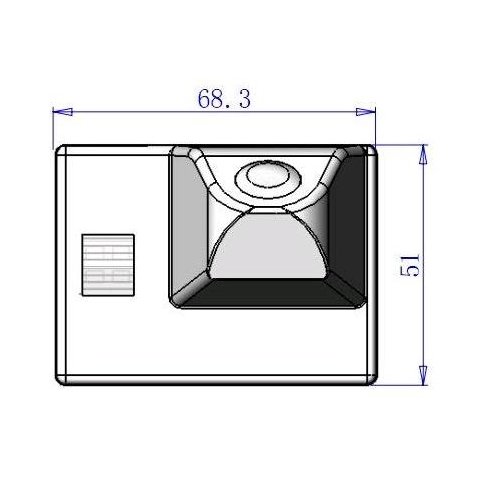

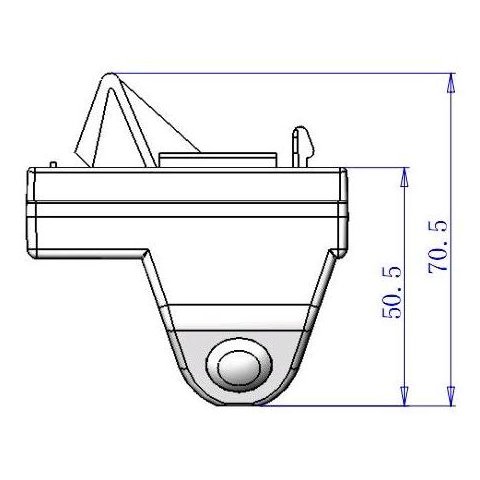

Dimensions
Land Cruiser Rear View Camera
Package Content
- Car rear view camera
- Power cable
- Video cable
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
