Car Video Interface for BMW 1/3/5 Series (F10/F20/F30)

id: 834557
Car Video Interface for BMW 1/3/5 Series (F10/F20/F30)
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued

Overview

0.9 kg Warranty: 12 months
Car video interface for BMW BMW 1 Series (F20), 3 Series (F30) and 5 Series (F10) of 2012 and following model years. Allows you to connect additional video sources such as external navigation box, rear view camera, DVD player, TV tuner your built-in car monitor. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

You may also like

Description

Car video interface for BMW 1 Series (F20), 3 Series (F30) and 5 Series (F10) of 2012 and following model years. Car video interface allows you to connect additional video sources such as external navigation box, rear view camera, DVD player, TV tuner to your built-in car monitor.

Car Video Interface for BMW
Technical Specifications

  1. Inputs:
    • A/V input (external video source) × 3
    • CVBS input (rear camera) × 1
    • Analog RGB input (for navigation system) × 1
    • LCD input (car system input) × 1
  2. Outputs:
    • LCD output × 1
    • A/V output (for headrest monitors) × 2
  3. Power
    • Input power: 8 V DC ~ 18 V DC
    • Consumption power: 5 W, Max
  4. Input mode switch
    • Video input mute function: possible to mute each input with DIP switches
    • Switching video sources with a remote control / remote button
  5. Video interface dimensions: 150 mm × 95 mm × 24 mm

Car Video Interface for BMW
Compatibility

Series Body Display size Model years
1 Series F20 6.5″ 2012∼
8.8″
3 Series F30 8.8″
5 Series F10 8.8″
10.2″

 BMW F20 / F30 2012 head unit BMW F20  2012

Car Video Interface for BMW
Manuals

Car Video Interface for BMW
Package Content

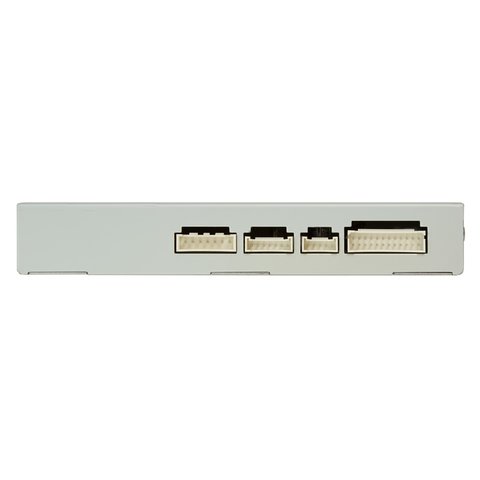

  • Car video interface main board.

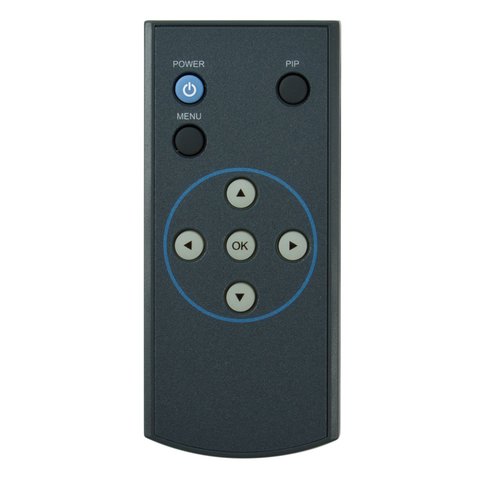

  • Remote control unit with IR cable or OSD keypad
  • Cables set
    • Power cable with protective filter

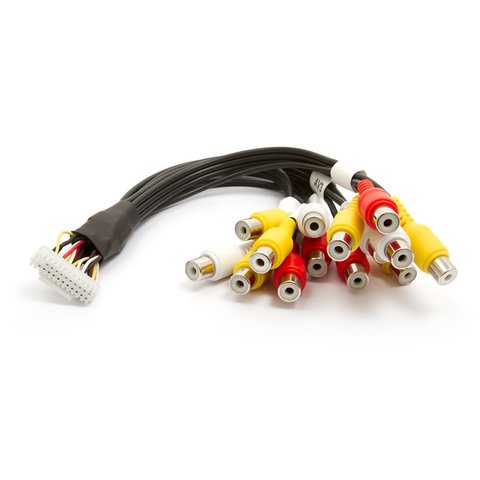

    • A/V cable
    • LCD cable
    • Toggle switch with cable
    • Monitor power cable
    • RGB cable
    • Rear camera power cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Video Interface is compatible with
  • BMW
Touch screen control of the connected devices
  • No
Adaptive parking guidelines
  • No
Modes switch by OEM buttons
  • No
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
