CS9200 Car Navigation Box (for Multimedia Receivers)
Overview
Description

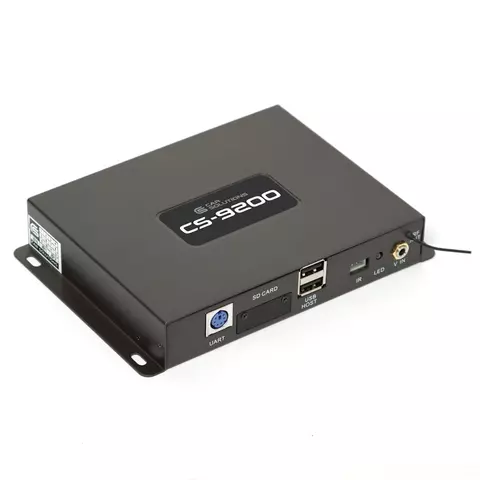

CS9200 navigation box t is designed to be connected to car multimedia receivers* and provides full functional navigation with touch screen control (for touch screen monitors). For monitors without touch screens, a remote controller with touchpad is used. Navigation box ensures Plug&Play installation.
CS9200 navigation box supports software from Navitel, IGo8, Garmin and other programs operating under WIN CE 6.0. In case a new version of the navigation program is released, it can be easily updated by rewriting it on SD card.
In order to connect CS9200 navigation box to your multimedia system you should purchase the necessary cable.
CS9200 navigation box differs from CS9200RV by absence of video input.
*Note! In case you need to connect navigation box to OEM monitor, purchase CS9200 navigation box for OEM monitors. You will also need car video interface for it.
Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.
CS9200 Navigation Box
Compatible Multimedia Receivers
CS9200 Navigation Box
Additional Features
Navigation Box Functionality Expansion
- Internet connection
We recommend purchasing 3G USB modem (this or this) for Internet connection. It is specially prepared for operation with navigation box. - USB devices connection. You can connect 2 USB devices with more than 500 mA current consumption without USB booster.
- Additional devices connection:
- Radar detector
- USB gyroscope
- TMC antenna to receive traffic information
- USB dongle for Wi-Fi (e.g., via phone connection)
- 3G modem 1 / 3G modem 2
- Bluetooth module for hands free calling
CS9200 Navigation Box
Technical Specifications
| System | Processor | ARM11 Samsung S3C6410 800 MHz |
| OS | WIN CE 6.0 | |
| Language / localisation | English / English (Russian) | |
| Memory | ROM | 128 MB |
| RAM | DDR 128 MB | |
| Memory cards | MMC, miniSD, SD, SDHC up to 32 GB (depends on the manufacturer) |
|
| Video outputs | RGB supported resolutions: |
320×240, 400×234, 480×234, 480×272, 640×240, 640×480, 800×480 |
| RCA | NTSC 3,58 MHz | |
| Audio outputs | RCA | stereo |
| TS 3.5 mm | 0.25 W dynamics socket | |
| Data | USB (2) | A type (for external devices 5 V / 1 A) |
| Control | Radio remote controller | with touch panel |
| Touch screen panel | via cable for multimedia systems* | |
| GPS | Chipset | MTK MT3329T |
| Channels | 66 | |
| Frequency | L1 1575,42 MHz | |
| Sensitivity | -165 dB | |
| Reacquisition | 1 s | |
| Protocol | GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV (1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s), (additionally GLL or MTK NMEA Command) |
|
| Hot/warm/cold start | 1 s / 28 s /30 s | |
| Antenna | SMA, active | |
| Power | 10-30 V DC | Can be connected to constant power supply.. |
| Dimensions | Main board dimensions (with holders) | 160 mm × 110 mm × 260 mm |
| Weight | 430 g |
*Cables for multimedia systems are not included in the package.
CS9200 Navigation Box
Manuals
Navigation Software Installation Tips *
- Default way for navigation software installation on memory card: Navi\Navi.exe
- Navigation software settings:
- GPS receiver COM port: COM1
- GPS receiver rate: 9600
- Video output resolution: 480×234
CS9200 Navigation Box
Package Content
- CS9200 navigation box main board
- Remote controller
- GPS antenna
- External speaker

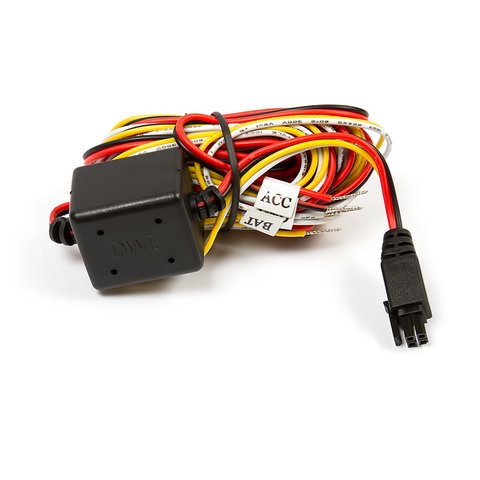

- Power cable 2.5 m
*Note! Connection cables and navigation software are not included in the package.
Note! Navigation box and navigation software installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
